last update: April 17, 2023

(Unit: mm)

TM5

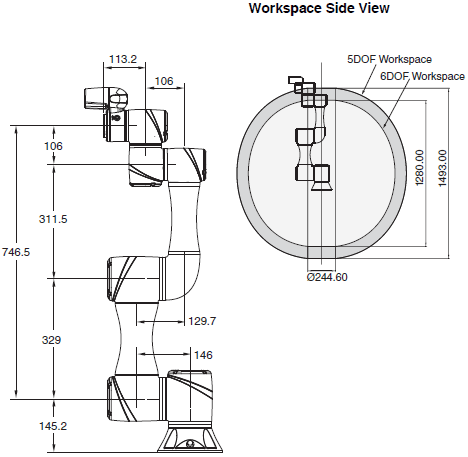

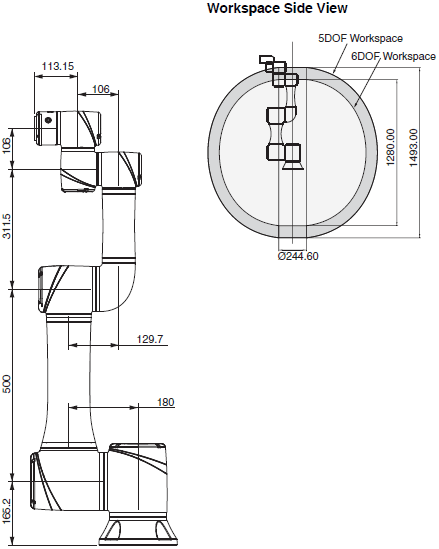

TM5-700

TM Series Dimensions 2

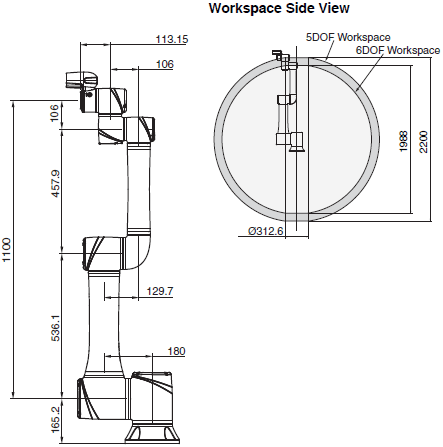

TM5-900

TM Series Dimensions 3

Footprint

TM Series Dimensions 4

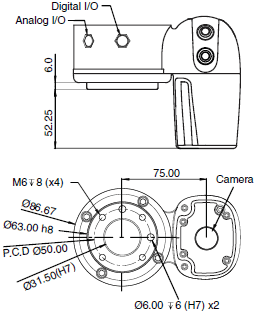

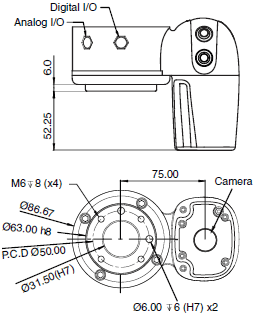

Flange

TM Series Dimensions 5

Control Box

TM Series Dimensions 6

TM12/14

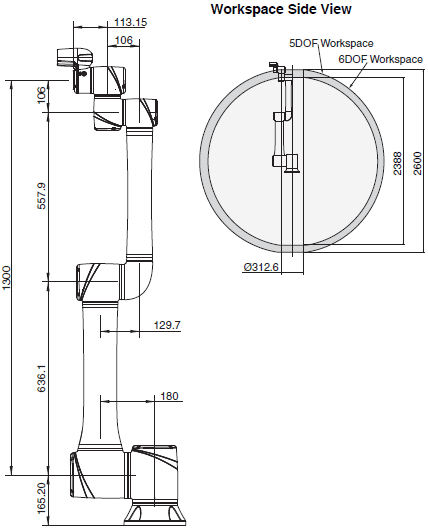

TM12

TM Series Dimensions 8

TM14

TM Series Dimensions 9

Footprint

TM Series Dimensions 10

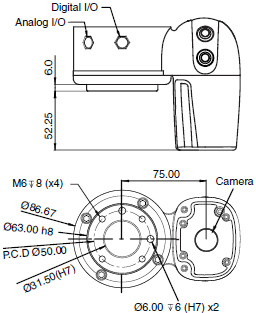

Flange

TM Series Dimensions 11

Control Box

TM Series Dimensions 12

TM16

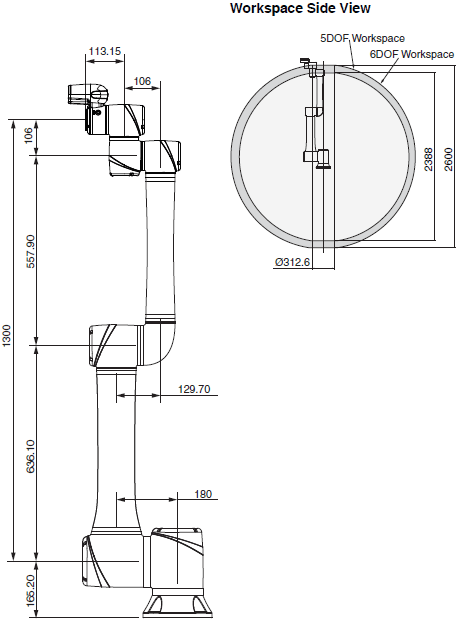

TM16

TM Series Dimensions 14

Footprint

TM Series Dimensions 15

Flange

TM Series Dimensions 16

Control Box

TM Series Dimensions 17

TM20

TM20/20X

TM Series Dimensions 19

Footprint

TM Series Dimensions 20

Flange

TM Series Dimensions 21

Control Box

TM Series Dimensions 22

Accessories

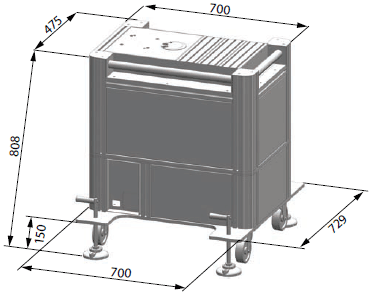

Mobile Work Station (MWS)

TM Series Dimensions 24

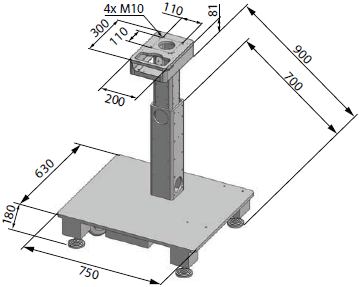

Robot Stand

TM Series Dimensions 25

Pneumatic Control Box

TM Series Dimensions 26

last update: April 17, 2023
