R88M-KE, R88D-KP

G5-series Pulse Train Input Type AC Servomotors/Servo Drives

R88M-KE, R88D-KP

High-performance Servo Optimal for positioning Application.

last update: November 1, 2017

Interpreting Model Numbers

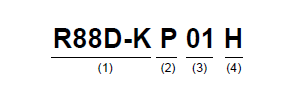

Servo Drive Model Numbers

No	Item	Symbol	Specifications
(1)	G5-series Servo Drive
(2)	Drive Type	P	Pulse train input type
(3)	Maximum Applicable Servomotor Capacity	01	100 W
		02	200 W
		04	400 W
		08	750 W
		10	1 kW
		15	1.5 kW
		20	2 kW
		30	3 kW
		50	5 kW
(4)	Power Supply Voltage	H	200 VAC

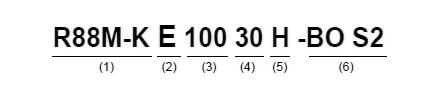

Servomotor Model Numbers

No	Item	Symbol	Specifications
(1)	G5-series Servomotor
(2)	Motor Type	E	Economy type
(2)	Motor Type	-	-
(3)	Servomotor Capacity	50	50 W
		100	100 W
		200	200 W
		400	400 W
		750	750 W
		900	900 W
		1K0	1 kW
		1K5	1.5 kW
		2K0	2 kW
		3K0	3 kW
		4K0	4 kW
		5K0	5 kW
(4)	Rated Rotation Speed	10	1,000 r/min
		20	2,000 r/min
		30	3,000 r/min
(5)	Applied Voltage	H	200 VAC (*INC)
(6)	Option	Blank	Straight shaft
		B	With brake
		O	With oil seal
		S2	With key and tap

Ordering Information

AC Servo Drives

Pulse train input type

Specifications		Model
Power Supply Voltage	Applicable Servomotor Capacity	Model
Single-phase 200VAC	100W	R88D-KP01H
	200W	R88D-KP02H
	400W	R88D-KP04H
	750W	R88D-KP08H
	1kW	R88D-KP10H
	1.5kW	R88D-KP15H
Three-phase 200VAC	2kW	R88D-KP20H
	3kW	R88D-KP30H
	5kW	R88D-KP50H

AC Servomotors

Cylinder Type

3,000-r/min servomotor

Straight shaft with key and tap

Specifications			Model
Specifications			Straight shaft with key and tap
Brake	Voltage	Rated output	Without oil seals
Without brake	200 V	50 W	R88M-KE05030H-S2
		100 W	R88M-KE10030H-S2
		200 W	R88M-KE20030H-S2
		400 W	R88M-KE40030H-S2
		750 W	R88M-KE75030H-S2
		1 kW	R88M-KE1K030H-S2
		1.5 kW	R88M-KE1K530H-S2
		2 kW	R88M-KE2K030H-S2
		3 kW	R88M-KE3K030H-S2
		4 kW	R88M-KE4K030H-S2
		5 kW	R88M-KE5K030H-S2
With brake	200 V	50 W	R88M-KE05030H-BS2
		100 W	R88M-KE10030H-BS2
		200 W	R88M-KE20030H-BS2
		400 W	R88M-KE40030H-BS2
		750 W	R88M-KE75030H-BS2
		1 kW	R88M-KE1K030H-BS2
		1.5 kW	R88M-KE1K530H-BS2
		2 kW	R88M-KE2K030H-BS2
		3 kW	R88M-KE3K030H-BS2
		4 kW	R88M-KE4K030H-BS2
		5 kW	R88M-KE5K030H-BS2

Note: Models with oil seals are also available.

Straight shaft without key

Specifications			Model
Specifications			Straight shaft without key
Brake	Voltage	Rated output	Without oil seals
Without brake	200 V	50 W	R88M-KE05030H
		100 W	R88M-KE10030H
		200 W	R88M-KE20030H
		400 W	R88M-KE40030H
		750 W	R88M-KE75030H
		1 kW	R88M-KE1K030H
		1.5 kW	R88M-KE1K530H
		2 kW	R88M-KE2K030H
		3 kW	R88M-KE3K030H
		4 kW	R88M-KE4K030H
		5 kW	R88M-KE5K030H
With brake	200 V	50 W	R88M-KE05030H-B
		100 W	R88M-KE10030H-B
		200 W	R88M-KE20030H-B
		400 W	R88M-KE40030H-B
		750 W	R88M-KE75030H-B
		1 kW	R88M-KE1K030H-B
		1.5 kW	R88M-KE1K530H-B
		2 kW	R88M-KE2K030H-B
		3 kW	R88M-KE3K030H-B
		4 kW	R88M-KE4K030H-B
		5 kW	R88M-KE5K030H-B

Note: Models with oil seals are also available.

2,000-r/min servomotor

Straight shaft with key and tap

Specifications			Model
Specifications			Straight shaft with key and tap
Brake	Voltage	Rated output	Without oil seals
Without brake	200 V	1kW	R88M-KE1K020H-S2
		1.5kW	R88M-KE1K520H-S2
		2kW	R88M-KE2K020H-S2
		3kW	R88M-KE3K020H-S2
		4kW	R88M-KE4K020H-S2
		5kW	R88M-KE5K020H-S2
With brake	200 V	1kW	R88M-KE1K020H-BS2
		1.5kW	R88M-KE1K520H-BS2
		2kW	R88M-KE2K020H-BS2
		3kW	R88M-KE3K020H-BS2
		4kW	R88M-KE4K020H-BS2
		5kW	R88M-KE5K020H-BS2

Note: Models with oil seals are also available.

Straight shaft without key

Specifications			Model
Specifications			Straight shaft without key
Brake	Voltage	Rated output	Without oil seals
Without brake	200 V	1kW	R88M-KE1K020H
		1.5kW	R88M-KE1K520H
		2kW	R88M-KE2K020H
		3kW	R88M-KE3K020H
		4kW	R88M-KE4K020H
		5kW	R88M-KE5K020H
With brake	200 V	1kW	R88M-KE1K020H-B
		1.5kW	R88M-KE1K520H-B
		2kW	R88M-KE2K020H-B
		3kW	R88M-KE3K020H-B
		4kW	R88M-KE4K020H-B
		5kW	R88M-KE5K020H-B

Note: Models with oil seals are also available.

1,000-r/min servomotor

Straight shaft with key and tap

Specifications			Model
Specifications			Straight shaft with key and tap
Brake	Voltage	Rated output	Without oil seals
Without brake	200 V	900 W	R88M-KE90010H-S2
		2 kW	R88M-KE2K010H-S2
		3 kW	R88M-KE3K010H-S2
With brake	200 V	900 W	R88M-KE90010H-BS2
		2 kW	R88M-KE2K010H-BS2
		3 kW	R88M-KE3K010H-BS2

Note: Models with oil seals are also available.

Straight shaft without key

Specifications			Model
Specifications			Straight shaft without key
Brake	Voltage	Rated output	Without oil seals
Without brake	200 V	900 W	R88M-KE90010H
		2 kW	R88M-KE2K010H
		3 kW	R88M-KE3K010H
With brake	200 V	900 W	R88M-KE90010H-B
		2 kW	R88M-KE2K010H-B
		3 kW	R88M-KE3K010H-B

Note: Models with oil seals are also available.

Decelerators

(Backlash = 3' Max./Backlash = 15' Max.)

Backlash = 3' Max

3,000-r/min servomotors

Straight shaft without key

Motor capacity	Gear Ratio	Model (Straight shaft)
50 W	1/5	R88G-HPG11B05100B
	1/9	R88G-HPG11B09050B
	1/21	R88G-HPG14A21100B
	1/33	R88G-HPG14A33050B
	1/45	R88G-HPG14A45050B
100 W	1/5	R88G-HPG11B05100B
	1/11	R88G-HPG14A11100B
	1/21	R88G-HPG14A21100B
	1/33	R88G-HPG20A33100B
	1/45	R88G-HPG20A45100B
200 W	1/5	R88G-HPG14A05200B
	1/11	R88G-HPG14A11200B
	1/21	R88G-HPG20A21200B
	1/33	R88G-HPG20A33200B
	1/45	R88G-HPG20A45200B
400 W	1/5	R88G-HPG14A05400B
	1/11	R88G-HPG20A11400B
	1/21	R88G-HPG20A21400B
	1/33	R88G-HPG32A33400B
	1/45	R88G-HPG32A45400B
750 W	1/5	R88G-HPG20A05750B
	1/11	R88G-HPG20A11750B
	1/21	R88G-HPG32A21750B
	1/33	R88G-HPG32A33750B
	1/45	R88G-HPG32A45750B
1 kW	1/5	R88G-HPG32A052K0B
	1/11	R88G-HPG32A112K0B
	1/21	R88G-HPG32A211K5B
	1/33	R88G-HPG50A332K0B
	1/45	R88G-HPG50A451K5B
1.5 kW	1/5	R88G-HPG32A052K0B
	1/11	R88G-HPG32A112K0B
	1/21	R88G-HPG32A211K5B
	1/33	R88G-HPG50A332K0B
	1/45	R88G-HPG50A451K5B
2 kW	1/5	R88G-HPG32A052K0B
	1/11	R88G-HPG32A112K0B
	1/21	R88G-HPG50A212K0B
	1/33	R88G-HPG50A332K0B
3 kW	1/5	R88G-HPG32A053K0B
	1/11	R88G-HPG50A113K0B
	1/21	R88G-HPG50A213K0B
4 kW	1/5	R88G-HPG32A054K0B
4 kW	1/11	R88G-HPG50A115K0B
5 kW	1/5	R88G-HPG50A055K0B
5 kW	1/11	R88G-HPG50A115K0B

Note:
1. The standard models have a straight shaft.
2.To order a Servomotor with a straight shaft with key, add “J” to the end of the model number, in the place indicated by the box.

2,000-r/min servomotors

Straight shaft without key

Motor capacity	Gear Ratio	Model (Straight shaft)
1 kW	1/5	R88G-HPG32A053K0B
	1/11	R88G-HPG32A112K0SB
	1/21	R88G-HPG32A211K0SB
	1/33	R88G-HPG50A332K0SB
	1/45	R88G-HPG50A451K0SB
1.5 kW	1/5	R88G-HPG32A053K0B
	1/11	R88G-HPG32A112K0SB
	1/21	R88G-HPG50A213K0B
	1/33	R88G-HPG50A332K0SB
2 kW	1/5	R88G-HPG32A053K0B
	1/11	R88G-HPG32A112K0SB
	1/21	R88G-HPG50A213K0B
	1/33	R88G-HPG50A332K0SB
3 kW	1/5	R88G-HPG32A054K0B
	1/11	R88G-HPG50A115K0B
	1/21	R88G-HPG50A213K0SB
	1/25	R88G-HPG65A253K0SB
4 kW	1/5	R88G-HPG50A055K0SB
	1/11	R88G-HPG50A115K0SB
	1/21	R88G-HPG65A205K0SB
	1/25	R88G-HPG65A255K0SB
5 kW	1/5	R88G-HPG50A055K0SB
	1/11	R88G-HPG50A115K0SB
	1/21	R88G-HPG65A205K0SB
	1/25	R88G-HPG65A255K0SB

Note:
1. The standard models have a straight shaft.
2. To order a Servomotor with a straight shaft with key, add “J” to the end of the model number, in the place indicated by the box.

1,000-r/min servomotors

Straight shaft without key

Motor capacity	Gear Ratio	Model (Straight shaft)
900 W	1/5	R88G-HPG32A05900TB
	1/11	R88G-HPG32A11900TB
	1/21	R88G-HPG50A21900TB
	1/33	R88G-HPG50A33900TB
2 kW	1/5	R88G-HPG32A052K0TB
	1/11	R88G-HPG50A112K0TB
	1/21	R88G-HPG50A212K0TB
	1/25	R88G-HPG65A255K0SB
3 kW	1/5	R88G-HPG50A055K0SB
	1/11	R88G-HPG50A115K0SB
	1/20	R88G-HPG65A205K0SB
	1/25	R88G-HPG65A255K0SB

Note:
1. The standard models have a straight shaft.
2. To order a Servomotor with a straight shaft with key, add “J” to the end of the model number, in the place indicated by the box.

Backlash = 15' Max

3,000-r/min servomotors

Straight shaft with key

Motor capacity	Gear Ratio	Model (Straight shaft)
50 W	1/5	R88G-VRSF05B100CJ
	1/9	R88G-VRSF09B100CJ
	1/15	R88G-VRSF15B100CJ
	1/25	R88G-VRSF25B100CJ
100 W	1/5	R88G-VRSF05B100CJ
	1/9	R88G-VRSF09B100CJ
	1/15	R88G-VRSF15B100CJ
	1/25	R88G-VRSF25B100CJ
200 W	1/5	R88G-VRSF05B200CJ
	1/9	R88G-VRSF09C200CJ
	1/15	R88G-VRSF15C200CJ
	1/25	R88G-VRSF25C200CJ
400 W	1/5	R88G-VRSF05C400CJ
	1/9	R88G-VRSF09C400CJ
	1/15	R88G-VRSF15C400CJ
	1/25	R88G-VRSF25C400CJ
750 W	1/5	R88G-VRSF05C750CJ
	1/9	R88G-VRSF09D750CJ
	1/15	R88G-VRSF15D750CJ
	1/25	R88G-VRSF25D750CJ

Accessories and Cables

Connection Cables (Power Cables, Brake Cables, Encoder Cables)

<Non-flexible Cables>

Power cable

Specifications		Without brake Model	With brake Model
[200 V] 3,000-r/min Servomotors of 50 to 750 W	3 m	R88A-CAGA003S	-
	5 m	R88A-CAGA005S
	10 m	R88A-CAGA010S
	15 m	R88A-CAGA015S
	20 m	R88A-CAGA020S
[200 V] 3,000-r/min Servomotors of 1 to 2 kW 2,000-r/min Servomotors of 1 to 2 kW 1,000-r/min Servomotors of 900 W	3 m	R88A-CAGB003S	R88A-CAGB003B
	5 m	R88A-CAGB005S	R88A-CAGB005B
	10 m	R88A-CAGB010S	R88A-CAGB010B
	15 m	R88A-CAGB015S	R88A-CAGB015B
	20 m	R88A-CAGB020S	R88A-CAGB020B
[200 V] 3,000-r/min Servomotors of 3 to 5 kW 2,000-r/min Servomotors of 3 to 5 kW 1,000-r/min Servomotors of 2 to 3 kW	3 m	R88A-CAGD003S	R88A-CAGD003B
	5 m	R88A-CAGD005S	R88A-CAGD005B
	10 m	R88A-CAGD010S	R88A-CAGD010B
	15 m	R88A-CAGD015S	R88A-CAGD015B
	20 m	R88A-CAGD020S	R88A-CAGD020B

Brake Cable

Specifications		Model
[200 V] 3,000-r/min Servomotors of 50 to 750 W	3 m	R88A-CAGA003B
	5 m	R88A-CAGA005B
	10 m	R88A-CAGA010B
	15 m	R88A-CAGA015B
	20 m	R88A-CAGA020B

Encoder Cable

Specifications		Model
[200 V] 3,000-r/min Servomotors of 50 to 750 W	3 m	R88A-CRGB003C
	5 m	R88A-CRGB005C
	10 m	R88A-CRGB010C
	15 m	R88A-CRGB015C
	20 m	R88A-CRGB020C
[200 V] 3,000-r/min Servomotors of 1 to 5 kW 2,000-r/min Servomotors of 1 to 5 kW 1,000-r/min Servomotors of 900W to 3kW	3 m	R88A-CRGC003N
	5 m	R88A-CRGC005N
	10 m	R88A-CRGC010N
	15 m	R88A-CRGC015N
	20 m	R88A-CRGC020N

<Flexible Cables>

Power cable

Specifications		Without brake	With brake Mode
[200 V] 3,000-r/min Servomotors of 50 to 750 W	3 m	R88A-CAGA003SR	-
	5 m	R88A-CAGA005SR
	10 m	R88A-CAGA010SR
	15 m	R88A-CAGA015SR
	20 m	R88A-CAGA020SR
[200 V] 3,000-r/min Servomotors of 1 to 2 kW 2,000-r/min Servomotors of 1 to 2 kW 1,000-r/min Servomotors of 900 W	3 m	R88A-CAGB003SR	R88A-CAGB003BR
	5 m	R88A-CAGB005SR	R88A-CAGB005BR
	10 m	R88A-CAGB010SR	R88A-CAGB010BR
	15 m	R88A-CAGB015SR	R88A-CAGB015BR
	20 m	R88A-CAGB020SR	R88A-CAGB020BR
[200 V] 3,000-r/min Servomotors of 3 to 5 kW 2,000-r/min Servomotors of 3 to 5 kW 1,000-r/min Servomotors of 2 to 3 kW	3 m	R88A-CAGD003SR	R88A-CAGD003BR
	5 m	R88A-CAGD005SR	R88A-CAGD005BR
	10 m	R88A-CAGD010SR	R88A-CAGD010BR
	15 m	R88A-CAGD015SR	R88A-CAGD015BR
	20 m	R88A-CAGD020SR	R88A-CAGD020BR

Note:
Different connectors are used for the motor power and the brake on 200-V, 3,000-r/min Servomotors of 50 to 750W.
When using a Servomotor with a brake, two cables are required: a Power Cable without Brake and a Brake cable.

Brake Cable

Specifications		Model
[200 V] 3,000-r/min Servomotors of 50 to 750 W	3 m	R88A-CAGA003BR
	5 m	R88A-CAGA005BR
	10 m	R88A-CAGA010BR
	15 m	R88A-CAGA015BR
	20 m	R88A-CAGA020BR

Encoder Cable

Specifications		Model
[200 V] 3,000-r/min Servomotors of 50 to 750 W	3 m	R88A-CRGB003CR
	5 m	R88A-CRGB005CR
	10 m	R88A-CRGB010CR
	15 m	R88A-CRGB015CR
	20 m	R88A-CRGB020CR
[200 V] 3,000-r/min Servomotors of 1 to 5 kW 2,000-r/min Servomotors of 1 to 5 kW 1,000-r/min Servomotors of 900W to 3kW	3 m	R88A-CRGC003NR
	5 m	R88A-CRGC005NR
	10 m	R88A-CRGC010NR
	15 m	R88A-CRGC015NR
	20 m	R88A-CRGC020NR

Cable/Connector

Connector

Specifications	Model
Control I/O Connector (CN1)	R88A-CNU11C
Encoder Connector (CN2)	R88A-CNW01R

Servomotor Connector

Specifications		Model
Servomotor Connector for Encoder Cable	[200 V] 3,000 r/min (50 to 750 W)	R88A-CNG02R
Power Cable Connector	(750 W max.)	R88A-CNG01A
Brake Cable Connector	(750 W max.)	R88A-CNG01B

Analog Monitor Cable

Specifications	Model
Control I/O Connector (CN1)	R88A-CNU11C
Encoder Connector (CN2)	R88A-CNW01R

Control Cables

Control Cables(for Connector Terminal Block)

Name	Specifications	Model
Connector Terminal Block Cables	1m	XW2Z-100J-B24
Connector Terminal Block Cables	2m	XW2Z-200J-B24
Connector Terminal Block Conversion Unit	M3 screws	XW2B-50G4
	M3.5 screws	XW2B-50G5
	M3 screws	XW2D-50G6

Connection Cables (for CN1)

Specifications Name	Unit	The number of axes	Length	Model
Position Control Unit (High-speed type) for Line-driver output	CJ1W-NC234/434	for 1 axis	1 m	XW2Z-100J-G9
			5 m	XW2Z-500J-G9
			10 m	XW2Z-10MJ-G9
		for 2 axis	1 m	XW2Z-100J-G1
			5 m	XW2Z-500J-G1
			10 m	XW2Z-10MJ-G1
Position Control Unit (High-speed type) for Open collector output	CJ1W-NC214/NC414	for 1 axis	1 m	XW2Z-100J-G13
		for 1 axis	3 m	XW2Z-300J-G13
		for 2 axis	1 m	XW2Z-100J-G5
		for 2 axis	3 m	XW2Z-300J-G5
General-purpose Control Connector on One End	-	-	1 m	R88A-CPG001S
General-purpose Control Connector on One End	-	-	2 m	R88A-CPG002S

Servo Relay Units (for CN1)

Specifications	The number of axes	Model
Position Control Unit:	for 1 axis	XW2B-20J6-1B
For CJ1W-NC113/NC133
For CS1W-NC113/NC133
For C200HW-NC113
Position Control Unit:	for 2 axis	XW2B-40J6-2B
For CJ1W-NC213/NC233/NC413/NC433
For CS1W-NC213/NC233/NC413/NC433
For C200HW-NC213/NC413
For CJ2M-CPU31/CPU32/CPU33/CPU34/CPU35	for 1 axis	XW2B-20J6-8A
For CJ2M-CPU11/CPU12/CPU13/CPU14/CPU15	for 2 axis	XW2B-40J6-9A
For FQM1-MMP22 (Pulse train output)	for 2 axis	XW2B-80J7-12A
For CQM1-CPU43-V1	for 1 axis	XW2B-20J6-3B

Servo Relay Unit cable (for Servo Drive/CN1)

Specifications	Length	Model
Position Control Unit: For CJ1W-NC[][]3[] For CS1W/C200HW-NC[][][] (XW2B-20J6-1B, XW2B-40J6-2B)	1m	XW2Z-100J-B25
	2 m	XW2Z-200J-B25
For CJ2M-CPU31/CPU32/CPU33/CPU34/CPU35 For CJ2M-CPU11/CPU12/CPU13/CPU14/CPU15 (XW2B-20J6-8A, XW2B-40J6-9A)	1 m	XW2Z-100J-B31
	2 m	XW2Z-200J-B31
For FQM1-MMP22 (Pulse train output) (XW2B-80J7-12A)	1 m	XW2Z-100J-B26
For FQM1-MMP22 (Pulse train output) (XW2B-80J7-12A)	2 m	XW2Z-200J-B26

Servo Relay Unit cable (for Position Control Unit)

Specifications		The number of axes	Length	Model
CS1W/C200HW open collector output type For CS1W-NC113 For C200HW-NC113 (XW2B-20J6-1B)		for 1 axis	0.5 m	XW2Z-050J-A6
		for 1 axis	1 m	XW2Z-100J-A6
CS1W/C200HW open collector output type For CS1W-NC213/NC413 For C200HW-NC213/NC413 (XW2B-40J6-2B)		for 2 axis	0.5 m	XW2Z-050J-A7
		for 2 axis	1 m	XW2Z-100J-A7
CS1W line-driver output type For CS1W-NC133 (XW2B-20J6-1B)		for 1 axis	0.5 m	XW2Z-050J-A10
CS1W line-driver output type For CS1W-NC133 (XW2B-20J6-1B)		for 1 axis	1 m	XW2Z-100J-A10
CS1W line-driver output type For CS1W-NC233/NC433 (XW2B-40J6-2B)		for 2 axis	0.5 m	XW2Z-050J-A11
		for 2 axis	1 m	XW2Z-100J-A11
CJ1W open collector output type For CJ1W-NC113 (XW2B-20J6-1B)		for 1 axis	0.5 m	XW2Z-050J-A14
		for 1 axis	1 m	XW2Z-100J-A14
CJ1W open collector output type For CJ1W-NC213/NC413 (XW2B-40J6-2B)		for 2 axis	0.5 m	XW2Z-050J-A15
		for 2 axis	1 m	XW2Z-100J-A15
CJ1W line-driver output type For CJ1W-NC133 (XW2B-20J6-1B)		for 1 axis	0.5 m	XW2Z-050J-A18
CJ1W line-driver output type For CJ1W-NC133 (XW2B-20J6-1B)		for 1 axis	1 m	XW2Z-100J-A18
CJ1W line-driver output type For CJ1W-NC233/NC433 (XW2B-40J6-2B)		for 2 axis	0.5 m	XW2Z-050J-A19
		for 2 axis	1 m	XW2Z-100J-A19
CJ1M open collector output type For CJ2M-CPU31/CPU32/CPU33/CPU34/CPU35 For CJ2M-CPU11/CPU12/CPU13/CPU14/CPU15 (XW2B-20J6-8A, XW2B-40J6-9A)		for 1 axis	0.5 m	XW2Z-050J-A33
		for 1 axis	1 m	XW2Z-100J-A33
CJ1M open collector output type For CJ2M-CPU31/CPU32/CPU33/CPU34/CPU35 For CJ2M-CPU11/CPU12/CPU13/CPU14/CPU15 (XW2B-20J6-8A, XW2B-40J6-9A)	General purpose I/O (26 pin)	for 2 axis	0.5 m	XW2Z-050J-A28
			1 m	XW2Z-100J-A28
			2 m	XW2Z-200J-A28
	Special I/ O(40 pin)	for 2 axis	0.5 m	XW2Z-050J-A30
			1 m	XW2Z-100J-A30
			2 m	XW2Z-200J-A30

Peripheral Devices (External Regeneration Resistors, Reactors, Mounting Brackets)

External Regeneration Resistors

Specifications	Model
80 W 50 Ω	R88A-RR08050S
80 W 100 Ω	R88A-RR080100S
220 W 47 Ω	R88A-RR22047S1
500 W 20 Ω	R88A-RR50020S

Reactors

Specifications	Model
R88D-KP01H(For single-phase input)	3G3AX-DL2002
R88D-KP02H(For single-phase input)	3G3AX-DL2004
R88D-KP04H(For single-phase input)	3G3AX-DL2007
R88D-KP08H/-KP10H(For single-phase input)	3G3AX-DL2015
R88D-KP15H(For single-phase input)	3G3AX-DL2022
R88D-KP01H/-KP02H/-KP04H/KP08H/-KP15H(For three-phase input)	3G3AX-AL2025
R88D-KP20H/-KP30H	3G3AX-AL2055
R88D-KP50H	3G3AX-AL2110

Mounting Brackets (L Brackets for Rack Mounting)

Specifications	Model
R88D-KP01H/-KP02H	R88A-TK01K
R88D-KP04H	R88A-TK02K
R88D-KP08H	R88A-TK03K
R88D-KP10H/-KP15H	R88A-TK04K

Software

FA Integrated Tool Package CX-One

Product name	Specifications			Model	Standards
Product name	Description	Number of licenses	Media	Model	Standards
FA Integrated Tool Package CX-One Ver. 4.[]	The CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One runs on following OS. OS: Windows XP (Service Pack 3 or higher), Vista or 7 Note: Except for Windows XP 64-bit version. CX-One Version.4.[] includes CX-Drive Ver.2[]. For details,refer to the CX-One catalog(Cat.No.R134).	1 license *1	DVD *2	CXONE-AL01D-V4	-

*1. Multi licenses are available for the CX-One (3, 10, 30, or 50 licenses).
*2. The CX-One is also available on CD (CXONE-AL[][]C-V4).

last update: November 1, 2017

Product Category

Motion / Drives
- Servomotors / Servo Drivers

Top of page
