Machine Automation Controller
last update: July 3, 2023

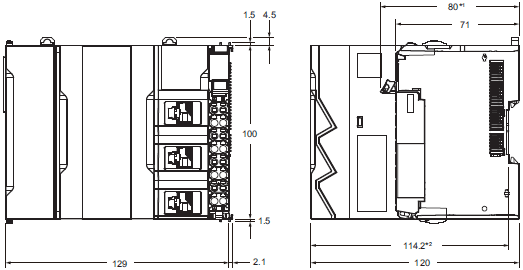

(Unit: mm)
*1. The dimension from the terminal block lock lever to the back surface of the CPU Unit.
*2. The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.
For dimensions after attaching the communications cables, refer to NX-series NX502 CPU Unit Hardware User's Manual (W629).
*1. The dimension from the attachment surface of the DIN Track to the front surface of the end cover.
