V440-F

Note 1: V440-F readers are sold without lenses, lights, cables, or mounting. All of these items can be found in later sections of this datasheet.
Note 2: The V440-F uses all the same cables and interconnect accessories as the MicroHAWK V430-F, with the exception of the M12 Ethernet cables. The V440-F uses standard Ethernet cables. High-Flex TPE cables and Robot Ethernet cables are shown later in this datasheet.
Note 3: Plus Mode is suitable for high-contrast codes such as labels. X-Mode is suitable for all labels as well as low print grade codes and DPM.

The V440-F has a C-mount, and can be used with standard C-mount, telecentric, and macro lenses. Omron offers a variety of lenses at a variety of prices and resolutions for standard reading and code grading applications.
Three different C-mount lens sets are listed below for general reading and code grading. The tables include cross references to compatible polarizing filters and Smart Series Ring Lights.
When using the V440-F with Smart Series Ring Lights and a polarizer, the appropriate polarizing filter must be used on the lens.

• Low Cost

• Small Size

• Reading Lens – 85 lp/mm

• Locking Screws for Focus and Iris

• F-Number of 1.2 to 16

*For working distances shorter than the minimum working distance specified for the lens, an extension ring is required to focus the lens.

• Medium Size

• Reading Lens – 100 lp/mm

• Locking Screws for Focus and Iris

• F-Number of 1.4 to 16

*These are the standard lenses offered in the Omron Vision Accessories Catalog.
*For working distances shorter than the minimum working distance specified for the lens, an extension ring is required to focus the lens.

• Medium Size

• Reading / 1D and 2D Code Grading Lens – 145 lp/mm

• Locking Screws for Focus and Iris

• F-Number of 1.4 to 16

*For working distances shorter than the minimum working distance specified for the lens, an extension ring is required to focus the lens.

• Macro Lens – Low Cost, Small Size

• 0.5x Magnification – 17 × 14.2 mm Field of View

　• Able to Capture 2 mil (0.05 mm) Code at 7 PPE

• 1x Magnification – 8.5 × 7.1 mm Field of View

　• Able to Capture 1 mil (0.025 mm) Code at 7 PPE

• Use with External Lighting

• High-Resolution Telecentric Lens – 150 Ip/mm

• 1x Magnification – 8.5 × 7.1 mm Field of View

　• Able to capture 1 mil (0.024 mm) Code Size at 7 PPE

• 2x Magnification – 4.25 × 3.55 mm Field of View

　• Able to capture 0.5 mil (0.012 mm) Code Size at 7 PPE

• 65 or 110 mm Working Distance

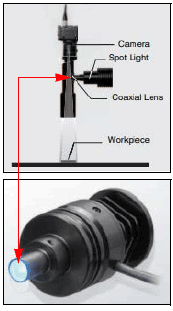

• Coaxial Lighting Option or use with External Lighting

• Red, White, or Blue Spot Light for Coaxial Lens (8 mm dia.)

• Analog Lighting Controller

• Extension Cable

*Note: See the Omron Vision Accessories Catalog for full descriptions.
Important: This option uses standard components available in Japan. Please note that this power supply cannot be sold in the U.S. or the EU. Refer to Telecentric Lens Coaxial Lighting – Option 2 for alternate components.

• Blue Spot Light for Coaxial Lens (8 mm dia.)

• 24V DC / 0.7W

• Flying Leads Extension Cable to Power Source

• Optional Power Supply

*Important: This option can be sold in the U.S., EU, and all other regions, as it can be powered directly from 24V, or can use the listed UL-compliant and CE-compliant DSP60 power supply.

*Important: Standard Omron FJ-VSG Ethernet cables are available in alternative and longer lengths.

The V440-F is designed for use with external lighting. It can be equipped with any vendor’s continuous power or strobe lighting. Strobe lights are triggered using Output 3 on the M12 IO connector through a flying leads cable.
Omron also offers a line of Smart Lights that can be used in continuous or strobed mode. NERLITE Smart Series Lights have a built-in strobe controller, so no external strobe controller is needed. Dedicated cable sets allow you to wire the NERLITE Smart Series Lights directly to the V440-F.
NERLITE Smart Series Lights include Ring Lights, DOALs, Large Area Bar Lights (MAX Lights), and a dedicated label-reading light called Pharmalite. Ring Lights are the most appropriate choice for the V440-F. Ring Lights, Ring Light accessories, and mounting brackets are show below.

*Note: The R-70 and R-100 Red Ring Lights are normally stock lights with short lead times. Blue and White Ring Lights are subject to standard NERLITE lead times. Check on availability before placing order.

*Note: Smart Series Ring Light Polarizer Kits must be used in conjunction with a cross-polarizer on the lens. See lens polarizer section of the datasheet to determine the correct part number to match the filter thread size of the lens.

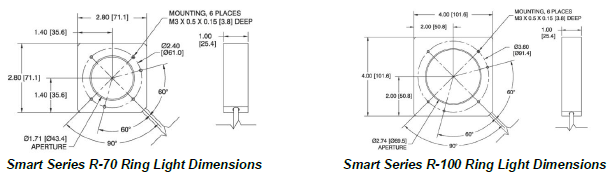

*Note: The C-Mount lens nests down inside the light aperture. The R-70 has a 43.4 mm opening. The R-100 has a 69.5 mm opening. Larger diameter lenses may not fit inside the R-70 ring light. Please see light size compatibility chart in the lens tables.
