E9NC-AA / VA

IoT Status Monitoring Amplifier

E9NC-AA / VA

IoT Status Monitoring Amplifiers for General-purpose Analog Outputs Are Connectable to Various Sensors

last update: March 1, 2021

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Amplifier Units

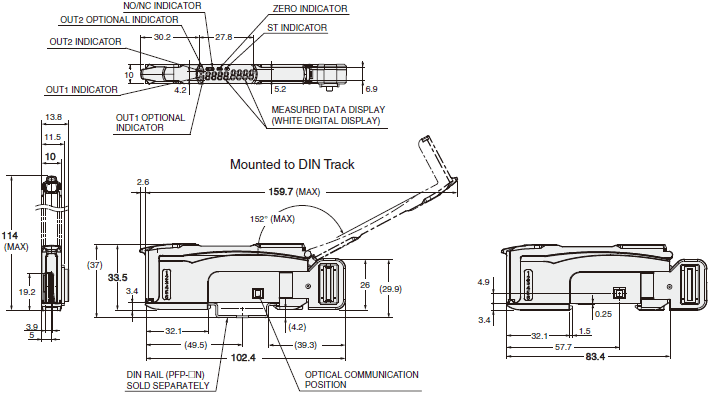

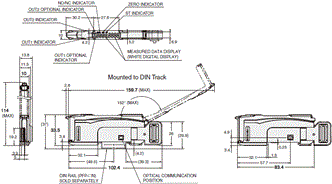

E9NC-AA0/-VA0

E9NC-AA / VA Dimensions 3

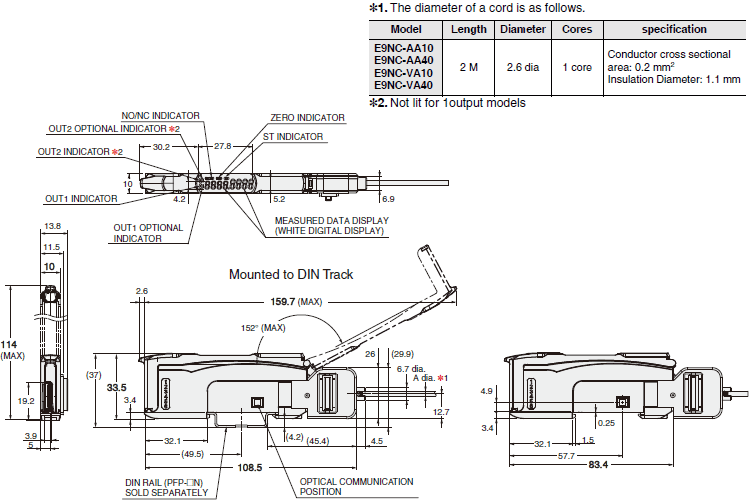

E9NC-AA10/-AA40/-VA10/-VA40

E9NC-AA / VA Dimensions 4

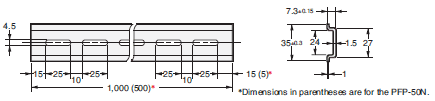

DIN Track

PFP-100N
PFP-50N

E9NC-AA / VA Dimensions 6

Material: Aluminum

PFP-100N2

E9NC-AA / VA Dimensions 8

Material: Aluminum

End Plate

PFP-M

E9NC-AA / VA Dimensions 10

Materials: Iron, zinc plating

E39-EP1

E9NC-AA / VA Dimensions 11

Materials: SUS304 CP

last update: March 1, 2021
