E3NC

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

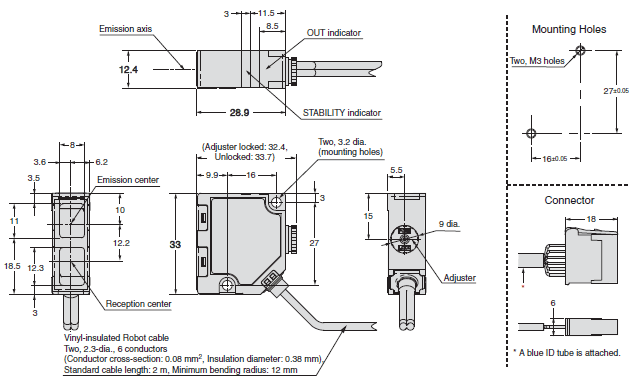

Retro-reflective Model

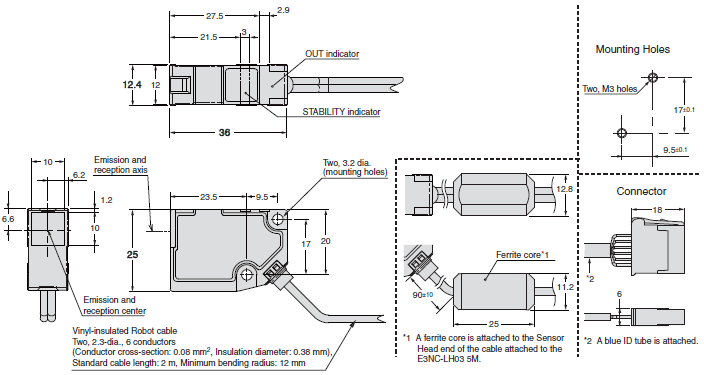

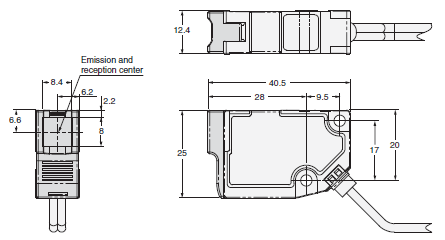

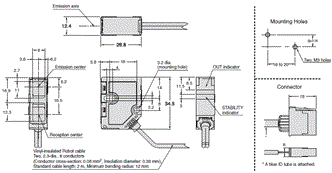

E3NC-LH03

Diffuse-reflective Model
E3NC-LH02

Limited-reflective Model

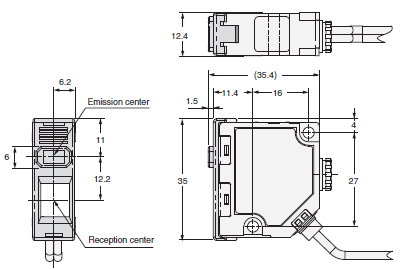

E3NC-LH01

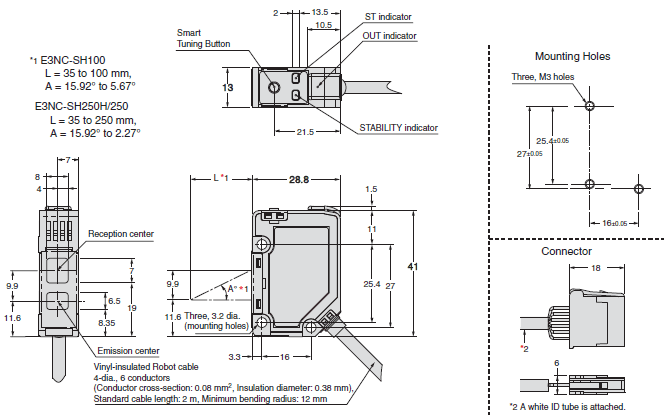

Distance-settable Models
E3NC-SH250H
E3NC-SH250
E3NC-SH100

Pre-wired Amplifier Units

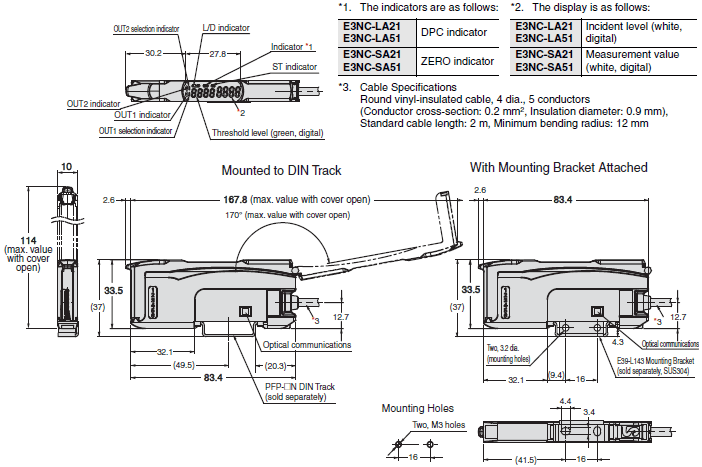

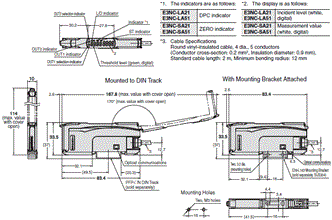

E3NC-LA21
E3NC-LA51
E3NC-SA21
E3NC-SA51

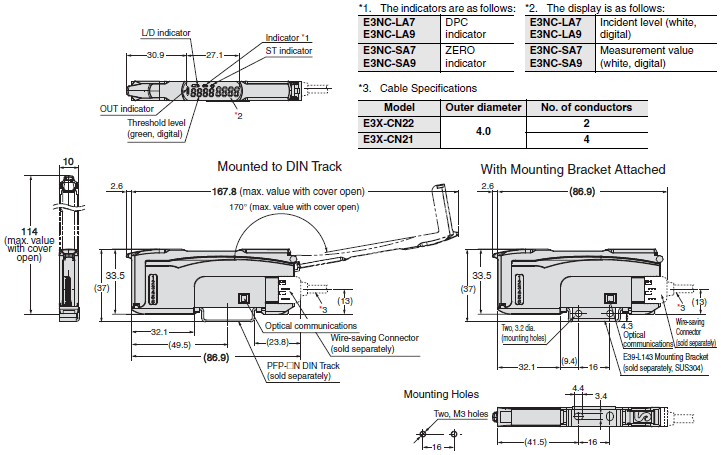

Amplifier Units with Wire-saving Connectors
E3NC-LA7
E3NC-LA9
E3NC-SA7
E3NC-SA9

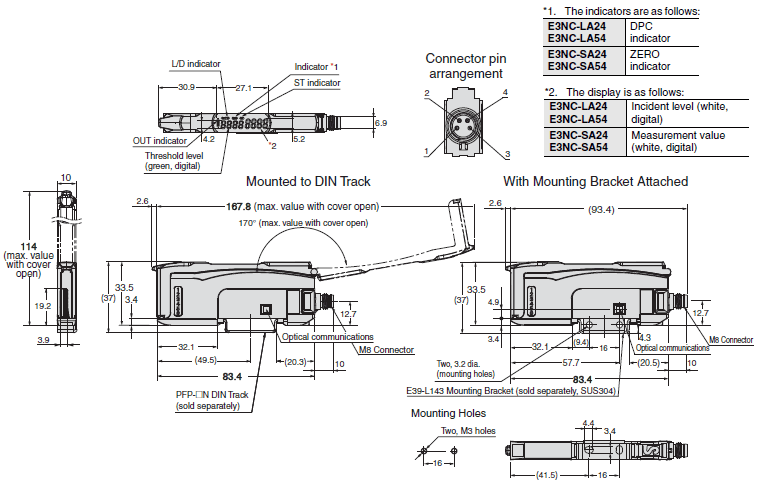

Amplifier Units with M8 Connectors
E3NC-LA24
E3NC-LA54
E3NC-SA24
E3NC-SA54

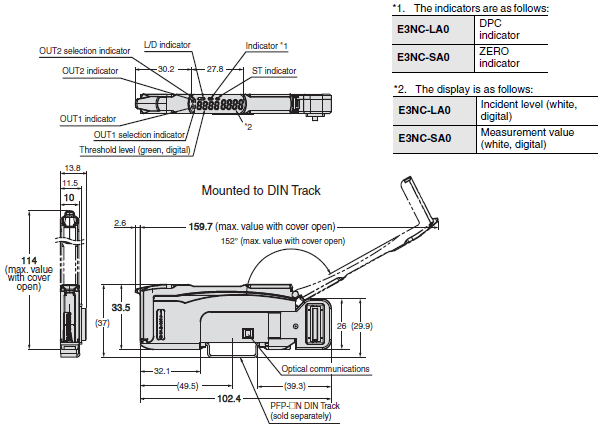

Amplifier Units with Connectors for Sensor Communications Unit
E3NC-LA0
E3NC-SA0

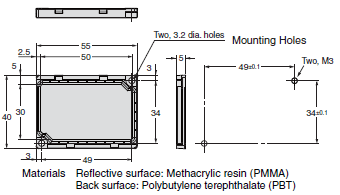

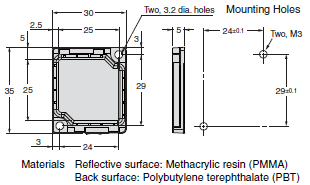

E39-R21

E39-RS10

E39-R22

E39-RS11

E39-P51

With E39-P51 Lens Attachment Attached

E39-P52

With E39-P52 Lens Attachment Attached

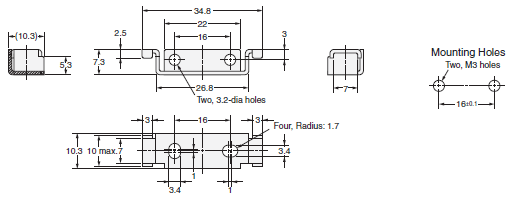

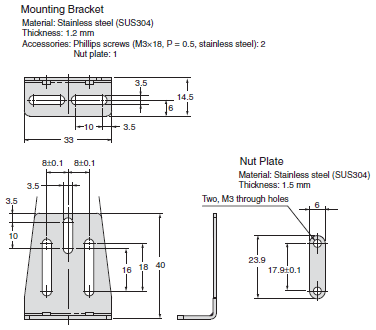

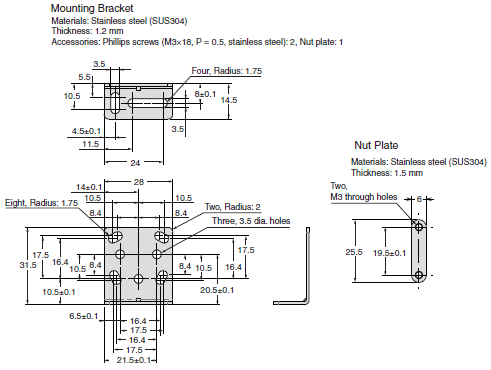

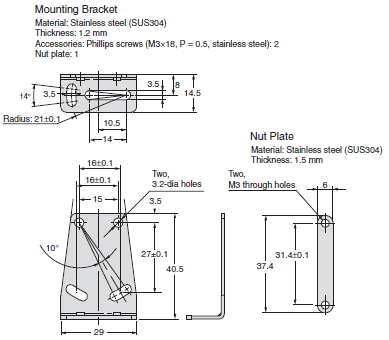

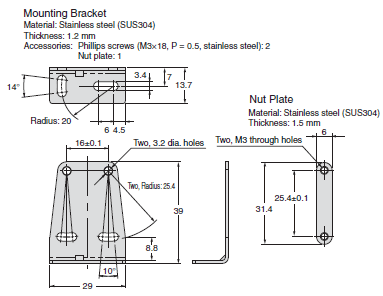

Sensor Head Mounting Brackets

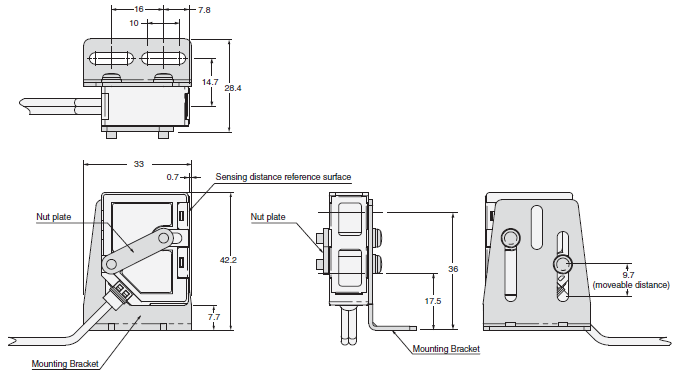

E39-L190

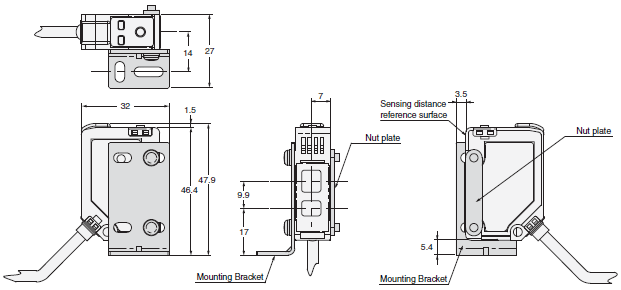

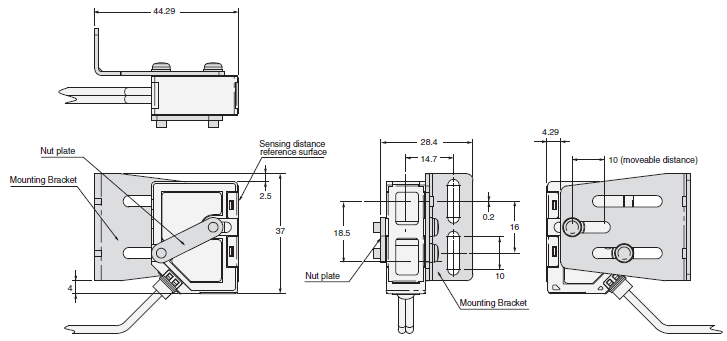

With E39-L190 Mounting Bracket Attached for Bottom Mounting

With E39-L190 Mounting Bracket Attached for Back Mounting

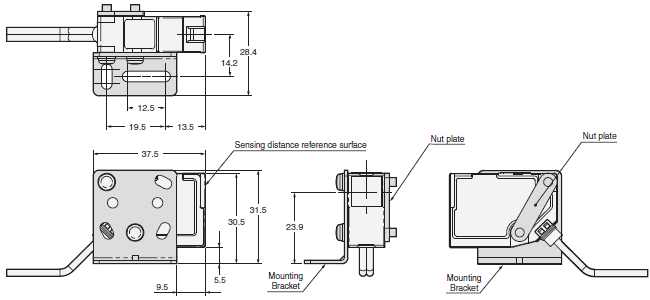

E39-L185

With E39-L185 Mounting Bracket Attached

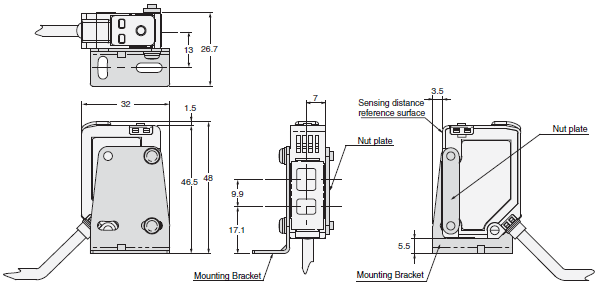

E39-L186

With E39-L186 Mounting Bracket Attached for Bottom Mounting

With E39-L186 Mounting Bracket Attached for Back Mounting

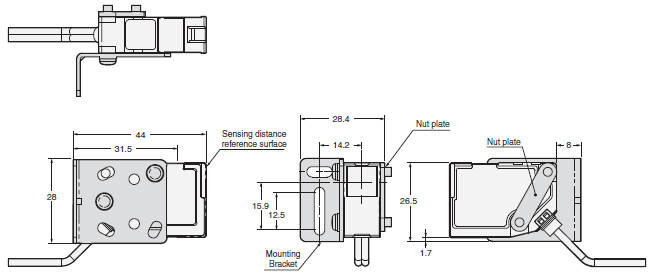

E39-L187

With E39-L187 Mounting Bracket Attached

E39-L188

With E39-L188 Mounting Bracket Attached

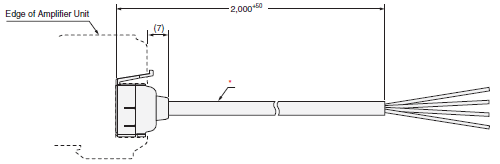

Master Connector

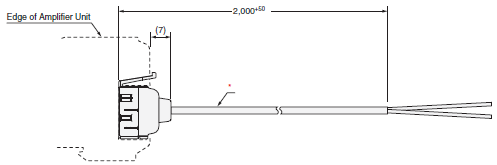

E3X-CN21

*4-dia. cable with 4 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24), Insulation diameter: 1.1 mm)

Slave Connector
E3X-CN22

*4-dia. cable with 2 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24), Insulation diameter: 1.1 mm)

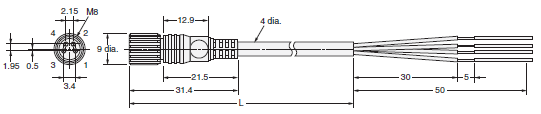

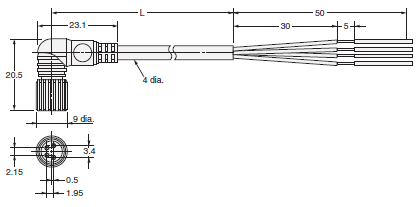

Straight
XS3F-M421-40[]-A

L-shaped
XS3F-M422-40[]-A

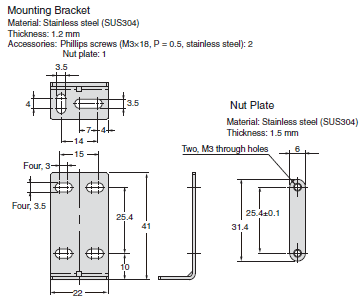

Amplifier Unit Mounting Bracket
E39-L143

Material: Stainless steel (SUS304)

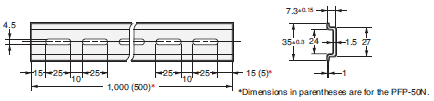

DIN Track

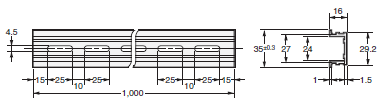

PFP-100N
PFP-50N

Material: Aluminum

PFP-100N2

Material: Aluminum

End Plate
PFP-M

Materials: Iron, zinc plating
