Liquid Leakage Sensor Amplifier/Liquid Leakage Sensor Amplifier with Disconnection Detection Function
last update: March 1, 2024
(Unit: mm)
K7L-AT50/AT50D/AT50DP
K7L-AT50B/AT50DB/AT50DPB

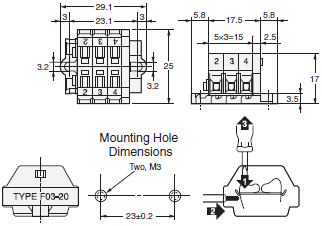

F03-20
F03-20T

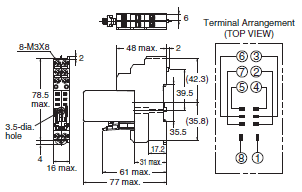

P2RFZ-08 (Round terminals can be used.)
Note: Secure the Sockets with M3 screws at a torque of 0.78 to 1.18 N⋅m.
* The applicable models of the K7L depend on the model of the Socket. If the correct Socket is not used, the K7L nameplate will be upside down.
P2RFZ-08-E
Note: Secure the Sockets with M3 screws at a torque of 0.59 to 0.88 N⋅m.
* The applicable models of the K7L depend on the model of the Socket. If the correct Socket is not used, the K7L nameplate will be upside down.

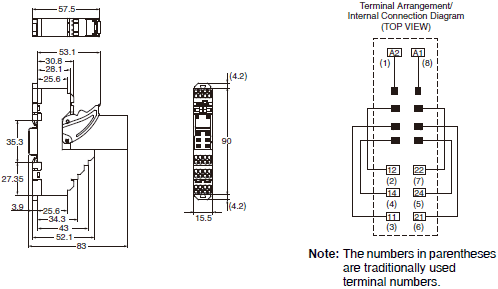

P2RF-08-PU
Note: The applicable models of the K7L depend on the model of the Socket. If the correct Socket is not used, the K7L nameplate will be upside down.

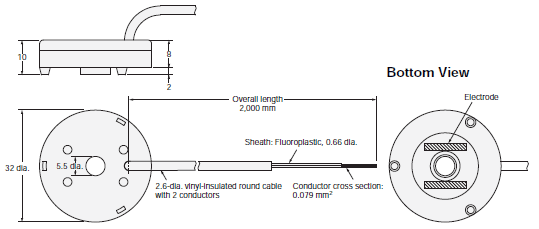

F03-16PS
F03-16PS-F

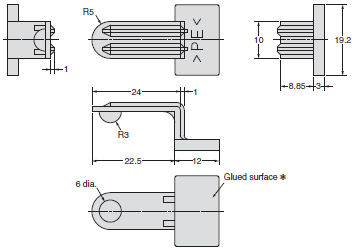

F03-26PS
* Use a commercially available bonding agent for PVC.Do not use adhesive tape for securing.
