SCARA Robot
New i4L robot for precision machining, assembly, and material handling
ACE software is available to download from the Omron US website.
Related Contents
Application Solutions
last update: July 11, 2022
(Unit: mm)

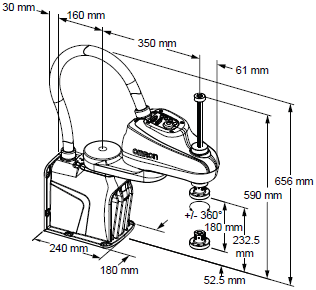

Robot Dimensions
i4-350L
i4-450L
i4-550L
i4-550L (350 mm Z)
Note: There must be at least 183 mm of clearance from the Primary Interface Panel connectors to provide adequate space
for cables.
for cables.
Arm Reach Dimensions
i4-350L
i4-450L
i4-550L
Note: Reach restrictions behind the robot may vary based on robot configuration, type, and cable configuration.
Other Dimensions
Front Panel

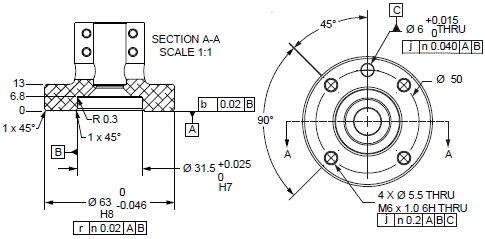

Tool Flange

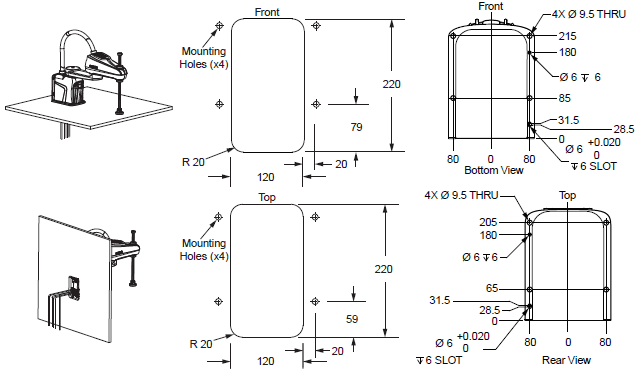

Mounting Flange/Cable Exit Cutout

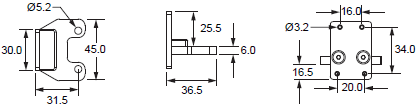

Camera Mounting Bracket
last update: July 11, 2022
