World’s smallest fully-integrated vision system.

Simplify multiple-device inspection systems by using a single camera

Traditional image inspections require one or more dedicated cameras to be paired with a code reader. Omron’s F430-F/F420-F Series Smart Camera bundles all this functionality into a single device, dramatically simplifying application design. The single-camera solution also reduces the initial investment, cuts down on wiring work and keeps maintenance costs to a minimum.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 1

[Inspections | 01] Multiple cameras in one to enhance precision

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 2
MicroHAWK F430-F / F420-F / F330-F / F320-F Features 3

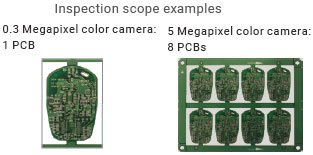

When using low-resolution cameras, multiple cameras are needed to divide a view in several sections and achieve the resolution required for inspections. The 5-megapixel color camera of the F430-F/F420-F Series delivers high-resolution imaging of multiple points with a single device.

Positioning of a single camera only

A single camera can capture a wide view, eliminating the need to combine multiple cameras that require time-consuming positioning design and fine-tuning.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 4

Presence, color and shape detection and reading at the same time

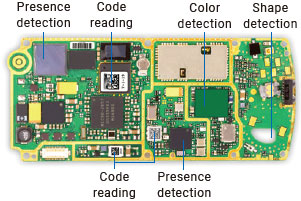

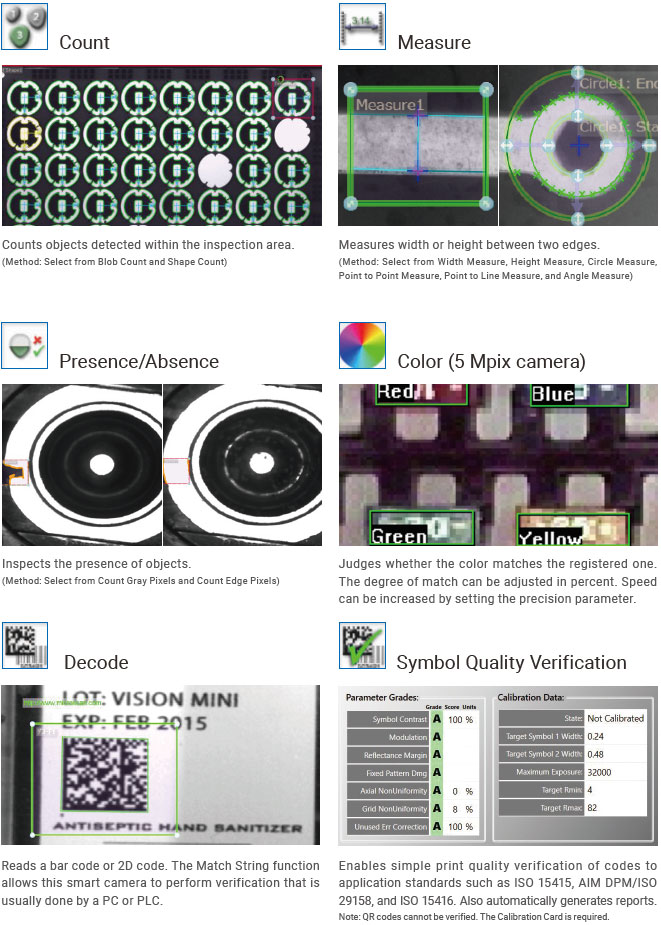

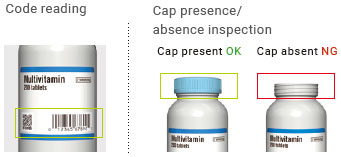

The F430-F/F420-F Series can simultaneously perform detection tasks (presence, color, and shape) and code reading within the field of view. You can easily increase inspection points for quality enhancement.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 5

[Inspections | 02] A single camera performing powerful inspection tasks and code reading

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 6
MicroHAWK F430-F / F420-F / F330-F / F320-F Features 7

To perform a simple inspection task - such as presence/absence detection, color detection, etc. - along with a code or character reading, a highly-functional sensor or a sensor combined with a code reader for each purpose would be required. The F430-F/F420-F Series successfully performs both functions, simplifying inspection tasks overall.

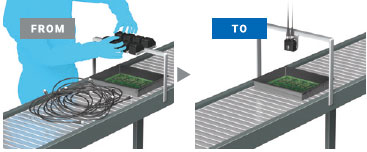

Wiring and installation space reduced by half

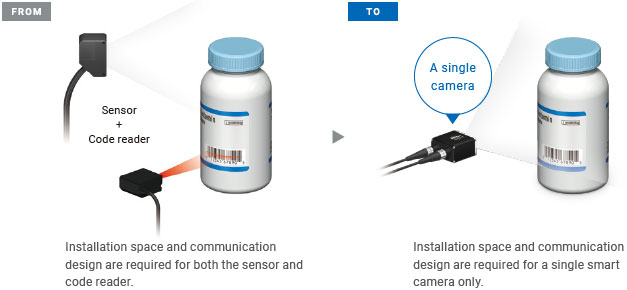

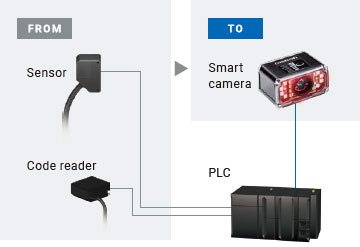

A single camera with smart camera and code reader functionalities halves the number of cables to the host device and the installation space.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 8

Text and verification result output

The F430-F/F420-F Series can output character strings and code quality verification results, which is difficult with standard smart cameras. The output information can be used for traceability.

Example of output data
1. Result of inspection: OK/NG
2. Result of code reading: Character string
3. Result of verification: Quality grade of code

[Inspections | 03] The long-life autofocus lens provides long operational lifetime without the need for replacement

How long until the camera is replaced due to failure caused by focus changes?

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 10
MicroHAWK F430-F / F420-F / F330-F / F320-F Features 11

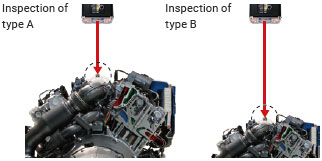

The F430-F/F420-F Series with a long-life liquid lens provides unlimited autofocus, easily focusing on different items just by switching the focus. The liquid lens greatly reduces the replacement frequency that is once every several months to several years with the mechanical autofocus lens.

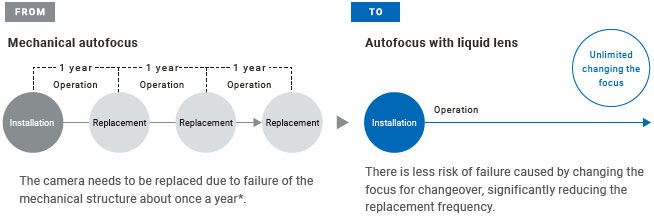

Difference between mechanical autofocus and liquid lens autofocus

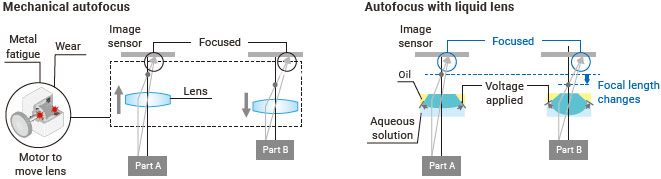

Mechanical autofocus uses a small motor as a major component. Metal fatigue and wear shorten the life of the camera, which requires replacement every year. The liquid autofocus lens can flexibly change its focal length without mechanical wear by applying voltage to change the internal oil and water shape.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 12

* Calculated using Omron’s condition below.
   Limit of standard mechanical autofocus : 50,000 operations
   Usage condition: Focus is changed 200 times a day for 20 days a month. 200 operations x 20 days x 12 months =
   48,000 operations » approximately 1 year.

Tools

12 tools are provided.
The provided tools vary depending on the model. Refer to the datasheet for details.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 14
MicroHAWK F430-F / F420-F / F330-F / F320-F Features 15

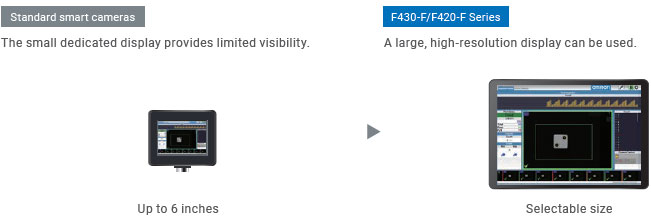

Simple setup on a single screen AutoVISION Software

3-step easy setting

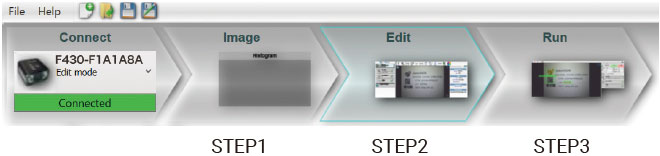

Follow the guide on the screen to start inspection in three steps: Image, Edit, and Run.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 17

[STEP 1. Image] One click to optimize image

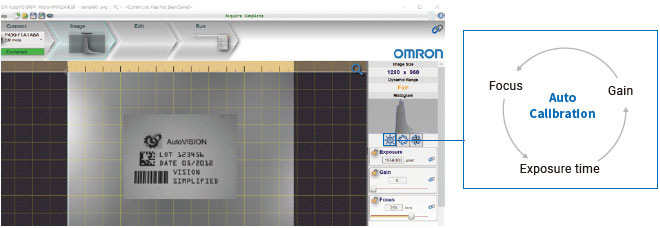

Place an object within a focal length and press the Autofocus button to optimize the focus and brightness of the inspection image.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 18

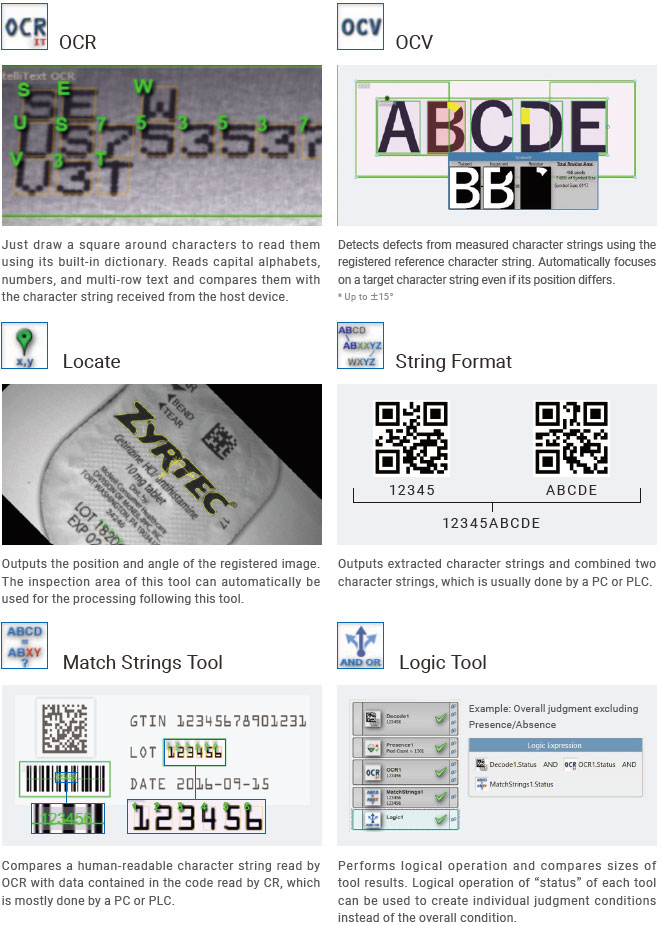

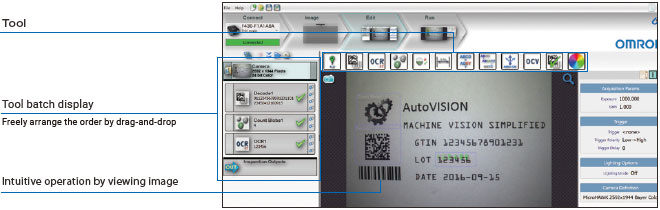

[STEP 2. Edit] Just select tools and specify inspection areas

Setup can be done by simply selecting tools and specifying the inspection areas. You can check the test measurement results on this screen and adjust the inspection range and the threshold by viewing the screen.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 19

[STEP 2. Edit] Allocate outputs

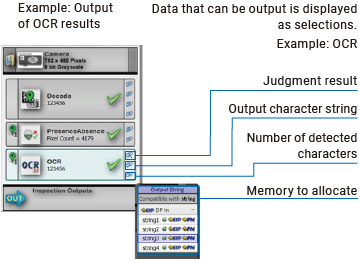

Select values and memory areas for each tool to allocate outputs, reducing PLC connection design time. In addition to OK/NG results, measured values, code reading results, and OCR results can be output, which is useful for data collection.

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 20

[STEP 3. Run] One click to start inspection

Just press the Run button to start the inspection. Inspection results are displayed on the screen in real time.

[Utilization] Free software and materials available to support your learning

AutoVISION software is available for free. Visit your local omron website or ask to your omron representatives.

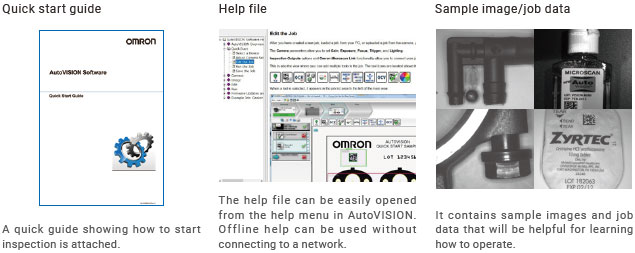

The quick start guide and sample image/job data attached with the software will help you use the software.
The software includes the help file, allowing you to refer to help without connecting to a network.

Examples of materials and data to support your learning

MicroHAWK F430-F / F420-F / F330-F / F320-F Features 23
