K6PM-TH

Thermal condition monitoring device

K6PM-TH

Consistently and remotely monitor and analysis the temperature status of panel devices to achieve both labor-saving and significant risk mitigation of abnormal stop

Model Number Structure

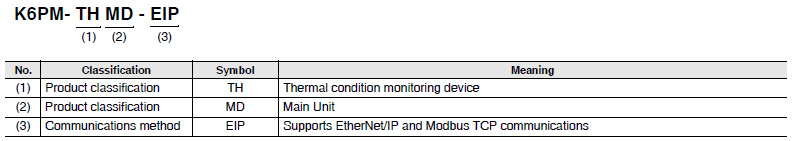

Model Number Legend

Main Unit

K6PM-TH Lineup 3

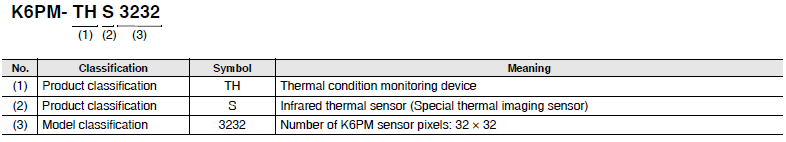

Infrared thermal sensor (Special thermal imaging sensor)

K6PM-TH Lineup 4

Ordering Information

Main Unit

Power supply voltage Model
24 VCD K6PM-THMD-EIP

Infrared thermal sensor

Resolution Model
32 × 32 K6PM-THS3232

EtherNet/IP communications cable recommended parts

Use a Category 5 or higher STP cable (shielded twisted pair cable).

Cable with Connectors

Item Recommended
manufacturer
Cable
length
(m)
Model
Wire Gauge and
Number of Pairs:
AWG26, 4-pair Cable
Cable Sheath
material: LSZH *2
Cable with Connectors
on Both Ends
(RJ45/RJ45)
Standard RJ45 plug type *1
Cable color: Yellow *3
3769_lu_5_1
OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Wire Gauge and
Number of Pairs:
AWG22, 2-pair Cable
Cable with Connectors
on Both Ends
(RJ45/RJ45)
Rugged RJ45 plug type *1
Cable color: Light blue
3769_lu_5_2
OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K

*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m.
  Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
  For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
*3. Cable colors are available in yellow, green, and blue. The last character of the model changes to "-G" or "-B".

Cable/Connector

Part name Manufacturer Model
Cable Hitachi Metals, Ltd. NETSTAR-C5E SA 0.5 × 4P *
RJ45 connector Panduit Corporation MPS588-C *

* It is recommended to use the cable and connector in combination described above.

Industrial switching hub (recommended parts)

Recommended
manufacturer
Appearance Functions Number of
ports
Model
OMRON 3769_lu_7_1 Quality of Service (QoS):
EtherNet/IP control data priority
10/100BASE-TX, Auto-Negotiation
5 W4S1-05D
Cisco Systems, Inc Consult the manufacturer.
https://www.cisco.com/
Contec USA, Inc. Consult the manufacturer.
https://www.contec.com/us/
Phoenix Contact USA Consult the manufacturer.
https://www.phoenixcontact.com/online/portal/pc
