Digital Temperature Controller (Simple Type) (48 x 48 mm)
last update: October 23, 2023
(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

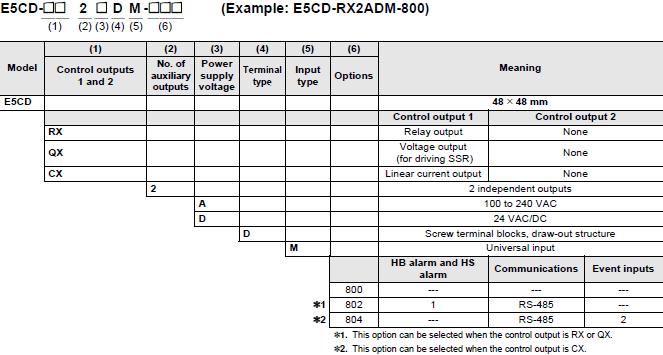

Model |
---|
E5CD-RX2ADM-800 |
E5CD-RX2DDM-800 |
E5CD-RX2ADM-802 |
E5CD-RX2DDM-802 |
E5CD-QX2ADM-800 |
E5CD-QX2DDM-800 |
E5CD-QX2ADM-802 |
E5CD-QX2DDM-802 |
Model |
---|
E53-COV17 |
E53-COV23 (3pcs) |
Note: The E53-COV10 cannot be used. Refer to Data Sheet for the mounted dimensions.
Model |
---|
Y92S-P8 |
Note:This Waterproof Packing is provided with the Digital Temperature Controller.
Hole diameter | Model |
---|---|
5.8 mm | E54-CT1 |
5.8 mm | E54-CT1L* |
12.0 mm | E54-CT3 |
12.0 mm | E54-CT3L* |
*Lead wires are included with these CTs. If UL certification is required, use these CTs.
Model |
---|
Y92F-45 |
Note:Use this Adapter when the panel has already been prepared for an E5B[] Controller.
Model |
---|
Y92A-48N |
Model |
---|
Y92F-49 |
Note:This Mounting Adapter is provided with the Digital Temperature Controller.
Model |
---|
Y92F-52 |
Type | Model |
---|---|
Hard Front Cover | Y92A-48H |
Soft Front Cover | Y92A-48D |
Model |
---|
Y92F-58 |
