D4ER-[]N

(Unit: mm)

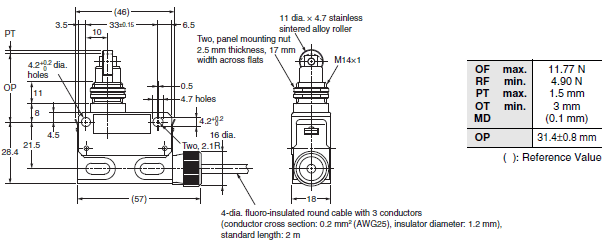

Roller Plunger
D4ER-1A21N *
D4ER-2A21N *

Cross Roller Plunger
D4ER-1B21N *
D4ER-2B21N *

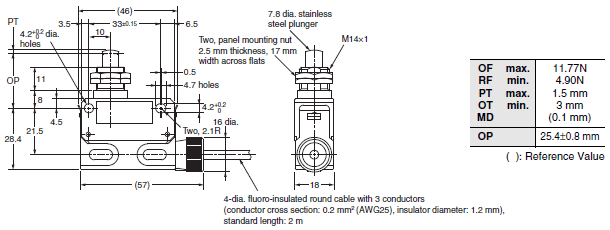

Plunger
D4ER-1C21N *
D4ER-2C21N *

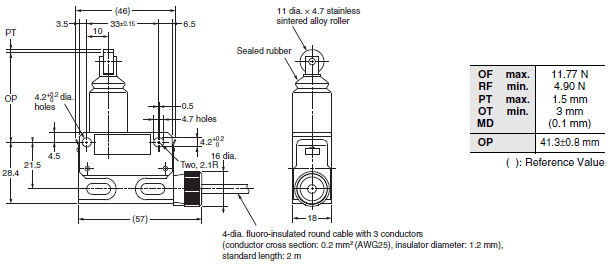

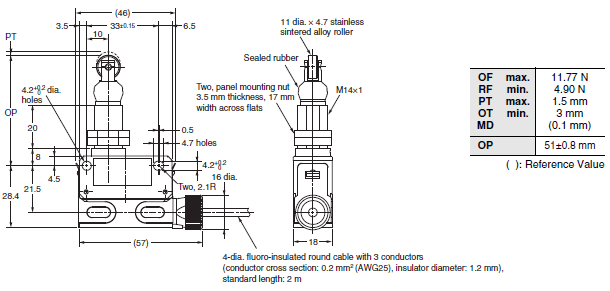

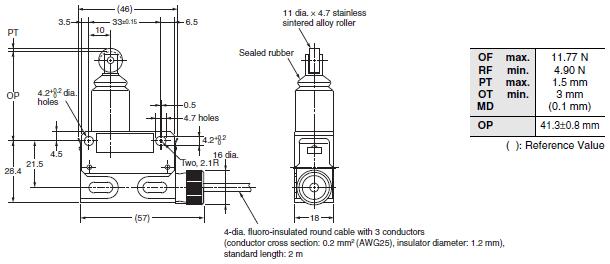

Sealed Roller Plunger
D4ER-1D21N *
D4ER-2D21N *

Sealed Cross Roller Plunger
D4ER-1E21N *
D4ER-2E21N *

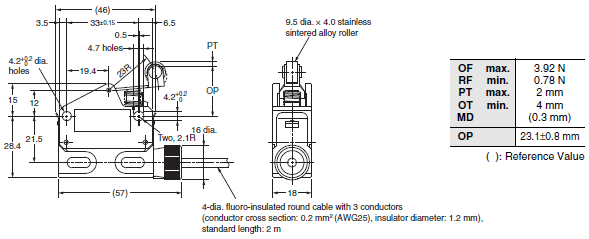

Roller Lever
D4ER-1G21N *
D4ER-2G21N *

Long Roller Plunger
D4ER-1L21N *
D4ER-2L21N *

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
* Only the model with a terminal specification of 21 is shown. The cable is attached to the left side for models with a terminal specification of 22.

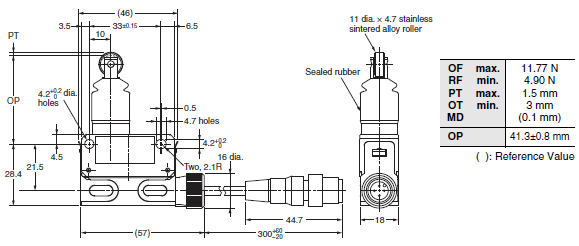

Roller Plunger
D4ER-1A21N-DTK1EJ *
D4ER-2A21N-DTK1EJ *

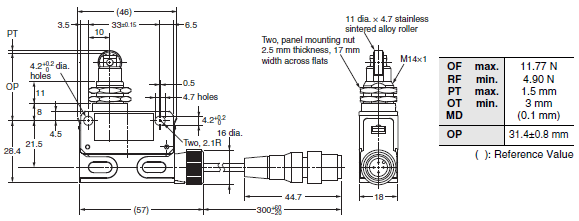

Cross Roller Plunger
D4ER-1B21N-DTK1EJ *
D4ER-2B21N-DTK1EJ *

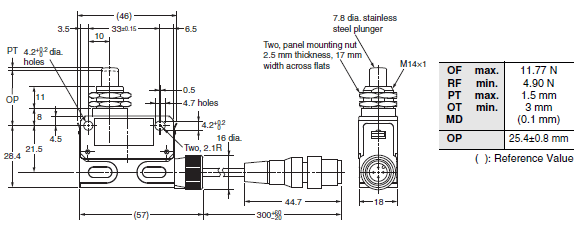

Plunger
D4ER-1C21N-DTK1EJ *
D4ER-2C21N-DTK1EJ *

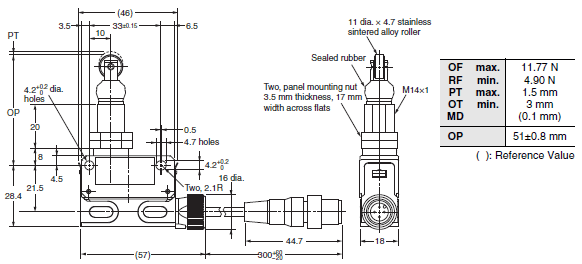

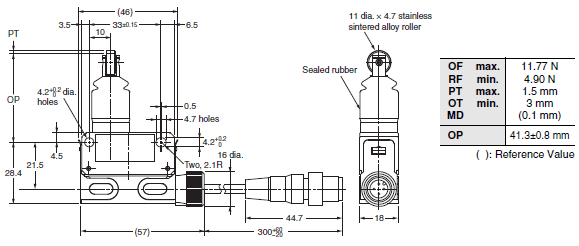

Sealed Roller Plunger
D4ER-1D21N-DTK1EJ *
D4ER-2D21N-DTK1EJ *

Sealed Cross Roller Plunger
D4ER-1E21N-DTK1EJ *
D4ER-2E21N-DTK1EJ *

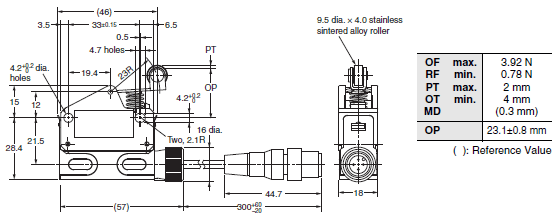

Roller Lever
D4ER-1G21N-DTK1EJ *
D4ER-2G21N-DTK1EJ *

Long Roller Plunger
D4ER-1L21N-DTK1EJ *
D4ER-2L21N-DTK1EJ *

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
       2. The location of the positioning piece on the connector is not always the same.
* Only the model with a terminal specification of 21 is shown. The cable is attached to the left side for models with a terminal specification of 22.
