E3FC

Photoelectric sensors in M18 stainless steel housing

E3FC

Best durability for wash-down applications

(Unit: mm)

Sensors

(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

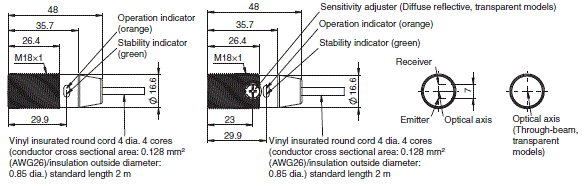

Pre-wired Models

E3FC-T[]1[]
E3FC-R[]1[]
E3FC-D[]1[]
E3FC-L[]1[]
E3FC-B[]1[]

E3FC Dimensions 5
E3FC Dimensions 6

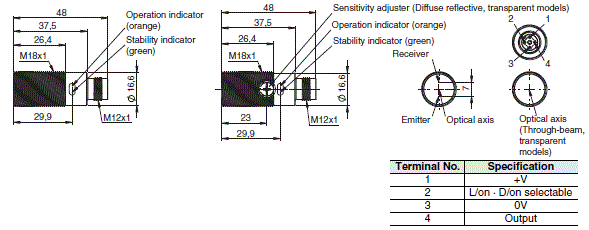

M12 Connector Models

E3FC-T[]2[]
E3FC-R[]2[]
E3FC-D[]2[]
E3FC-L[]2[]
E3FC-B[]2[]

E3FC Dimensions 9
E3FC Dimensions 10

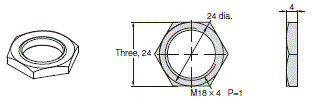

Attached nut

E3FC Dimensions 12

Accessories (Order Separately)

Reflectors

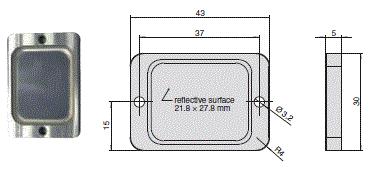

E39-R1S

E3FC Dimensions 15

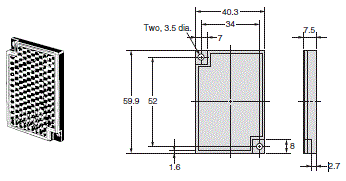

E39-R50

E3FC Dimensions 16

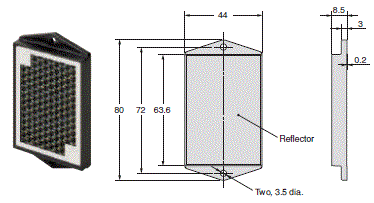

E39-RP1

E3FC Dimensions 17

E39-R16

E3FC Dimensions 18

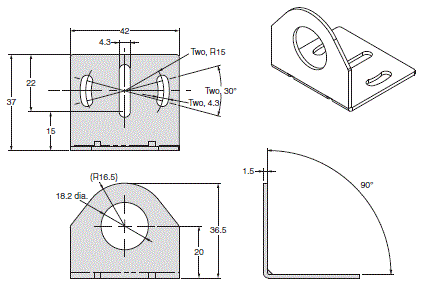

Mounting brackets

E39-L183

E3FC Dimensions 20

Flush mounting nut

E39-EL16

E3FC Dimensions 22
