E5CC-T
Programmable Temperature Controller (Digital Controller) (48 × 48 mm)
48 × 48 mm. Programmable Controllers Join the E5[]C Series! Program up to 256 segments can handle a wide variety of applications.
Related Contents
Application Solutions
last update: October 23, 2023

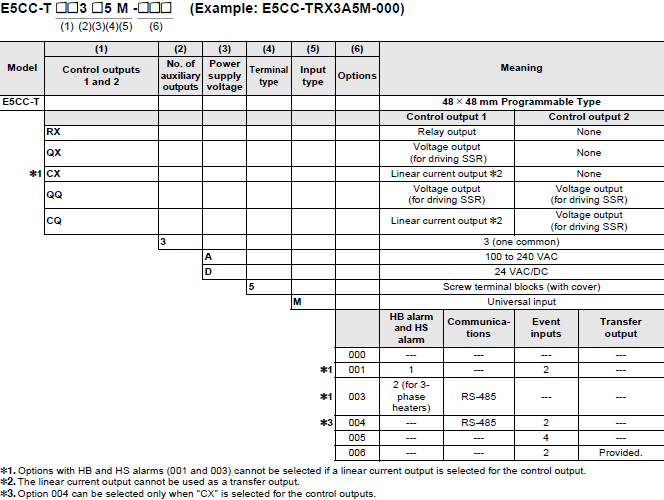

Model Number Legend
Models with Screw Terminal Blocks
Heating and Cooling Control
Using Heating and Cooling Control
(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
Optional Products (Order Separately)
USB-Serial Conversion Cable
| Model |
|---|
| E58-CIFQ2 |
Terminal Covers
| Model |
|---|
| E53-COV17 |
| E53-COV23 (3pcs) |
Note: The Terminal Covers E53-COV23 are provided with the Digital Temperature Controller. The E53-COV10 cannot be
used.
Refer to Data Sheet for the mounted dimensions.
used.
Refer to Data Sheet for the mounted dimensions.
Waterproof Packing
| Model |
|---|
| Y92S-P8 |
Note: The Waterproof Packing is provided with the Digital Temperature Controller.
Current Transformers (CTs)
| Hole diameter | Model |
|---|---|
| 5.8 mm | E54-CT1 |
| 5.8 mm | E54-CT1L * |
| 12.0 mm | E54-CT3 |
| 12.0 mm | E54-CT3L * |
* Lead wires are included with these CTs. If UL certification is required, use these CTs.
Adapter
| Model |
|---|
| Y92F-45 |
Note: Use this Adapter when the panel has already been prepared for an E5B[] Controller.
Waterproof Cover
| Model |
|---|
| Y92A-48N |
Mounting Adapter
| Model |
|---|
| Y92F-49 |
Note: This Mounting Adapter is provided with the Digital Temperature Controller.
DIN Track Mounting Adapter
| Model |
|---|
| Y92F-52 |
Front Covers
| Type | Model |
|---|---|
| Hard Front Cover | Y92A-48H |
| Soft Front Cover | Y92A-48D |
CX-Thermo Support Software
| Model |
|---|
| EST2-2C-MV4 |
Note: CX-Thermo version 4.61 or higher is required for the E5CC-T.
For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4.
For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4.
