General Specification
| Item | Specification | |
|---|---|---|
| Enclosure | Mounted in a panel | |
| Grounding method | Ground to 100 Ω or less | |
| Operating
environment |
Ambient operating
temperature |
0 to 55°C |
| Ambient operating
humidity |
10% to 95% (with no condensation or icing) | |
| Atmosphere | Must be free from corrosive gases. | |
| Ambient storage
temperature |
-25 to 70°C (with no condensation or icing) | |
| Altitude | 2,000 m max. | |
| Pollution degree | 2 or less: Meets IEC 61010-2-201. | |
| Noise immunity | 2 kV on power supply line (Conforms to IEC61000-4-4.) | |
| Overvoltage category | Category II: Meets IEC 61010-2-201. | |
| EMC immunity level | Zone B | |
| Vibration resistance | Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2, 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
|
| Shock resistance | Conforms to IEC 60068-2-27. 147 m/s2, 3 times each in X, Y, and Z
directions |
|
| Applicable standards * | cULus: Listed (UL508), ANSI/ISA 12.12.01, EU: EN 61131-2, C-Tick or RCM,
KC Registration, NK, and LR |
|
* Refer to the OMRON website (www.ia.omron.com) or ask your OMRON representative for the most recent applicable standards for each model.
Specification
Additional NX Unit Power Supply Unit NX-PD1000
| Unit name | Additional NX Unit Power Supply Unit |
|---|---|
| Model | NX-PD1000 |
| External connection
terminals |
Screwless push-in terminal block (8 terminals) |
| Power supply voltage | 24 VDC (20.4 to 28.8 VDC) |
| NX Bus power supply
capacity |
10 W max. (Refer to Installation orientation and restrictions for details.) |
| NX Unit power supply
efficiency |
70% |
| Unwired terminal
current capacity |
4 A max. (Including the current of through-wiring) |
| Dimensions | 12 (W) × 100 (H) 71 × (D) |
| Isolation method | No-isolation |
| Insulation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) |
| Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. |
| NX Unit power
consumption |
• Connected to a CPU Unit or Communication Control Unit
0.85 W max. • Connected to a Communications Coupler Unit 0.45 W max. |
| I/O current
consumption |
No consumption |
| Weight | 65g max. |

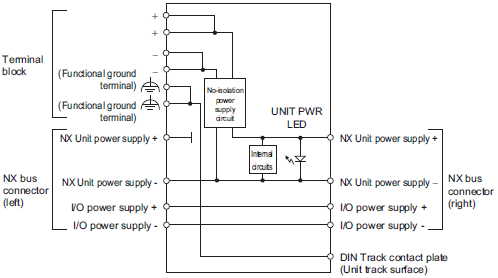

| Circuit layout |  |

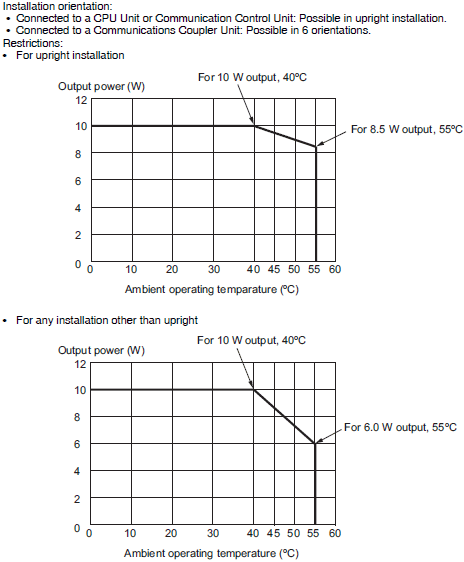

| Installation orientation
and restrictions |
 |

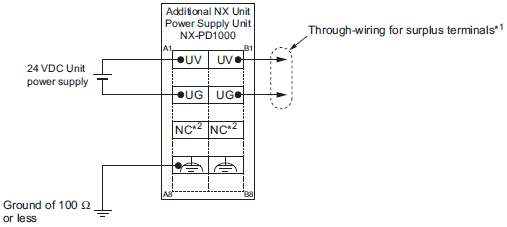

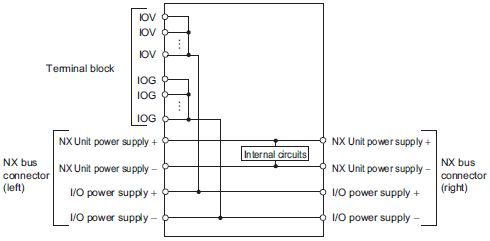

| Terminal connection
diagram |
 |
*1. You can use the unwired terminals of the Unit power supply terminals (UV/UG) for through-wiring of the Additional NX
Unit Power Supply Unit or the Unit power supply terminals on the EtherCAT Coupler Unit.
*2. The NC terminal is not connected to the internal circuit.
Unit Power Supply Unit or the Unit power supply terminals on the EtherCAT Coupler Unit.
*2. The NC terminal is not connected to the internal circuit.
Additional I/O Power Supply Units NX-PF0[]30
| Unit name | Additional I/O Power Supply Unit | |
|---|---|---|
| Model | NX-PF0630 | NX-PF0730 |
| External connection
terminals |
Screwless push-in terminal block (8 terminals) | |
| Power supply voltage | 5 to 24 VDC (4.5 to 28.8 VDC) * | |
| I/O power supply
maximum current |
4 A | 10 A |
| Current capacity of I/O
power supply terminal |
4 A max. | 10 A max. |
| Dimensions | 12 (W) × 100 (H) 71 × (D) | |
| Isolation method | No-isolation | |
| Insulation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) | |
| Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. | |
| NX Unit power
consumption |
• Connected to a CPU Unit or Communication Control Unit
0.85 W max. • Connected to a Communications Coupler Unit 0.45 W max. |
|
| I/O current
consumption |
10 mA max. | |
| Weight | 65 g max. | |
| Circuit layout |  |
|
| Installation orientation
and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
|

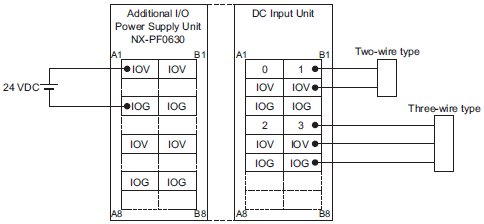

| Terminal connection
diagram |
 |
|
| Overload/low voltage
detection |
Not supported | |
| Protective function | Not supported. | |
* Use an output voltage that is appropriate for the I/O circuits of the NX Units and the connected external devices.

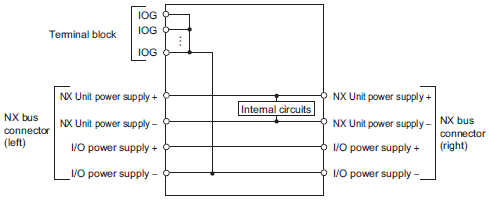

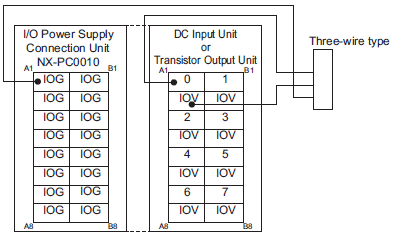

I/O Power Supply Connection Unit IOG terminal type NX-PC0010
| Unit name | I/O Power Supply Connection Unit |
|---|---|
| Model | NX-PC0010 |
| External connection
terminals |
Screwless push-in terminal block (16 terminals) |
| Number of I/O power
supply terminals |
IOG: 16 terminals |
| Current capacity of I/O
power supply terminal |
4 A/terminal max. |
| Dimensions | 12 (W) × 100 (H) 71 ×(D) |
| Isolation method | No-isolation |
| Insulation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) |
| Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. |
| NX Unit power
consumption |
• Connected to a CPU Unit or Communication Control Unit
0.85 W max. • Connected to a Communications Coupler Unit 0.45 W max. |
| I/O current
consumption |
No consumption |
| Weight | 65 g max. |
| Circuit layout |  |
| Installation orientation
and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
| Terminal connection
diagram |
 |

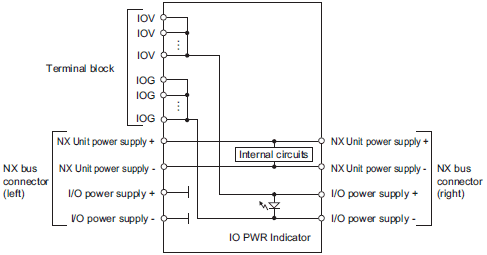

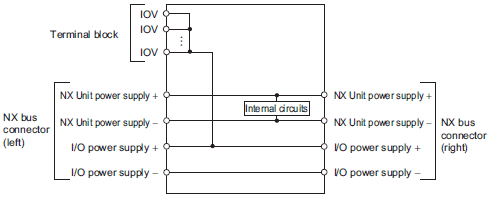

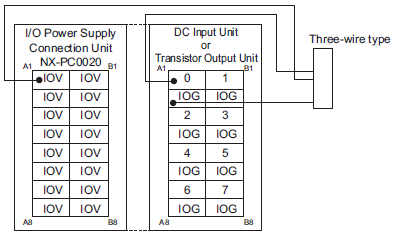

I/O Power Supply Connection Unit IOV terminal type NX-PC0020
| Unit name | I/O Power Supply Connection Unit |
|---|---|
| Model | NX-PC0020 |
| External connection
terminals |
Screwless push-in terminal block (16 terminals) |
| Number of I/O power
supply terminals |
IOV: 16 terminals |
| Current capacity of I/O
power supply terminal |
4 A/terminal max. |
| Dimensions | 12 (W) × 100 (H) 71 × (D) |
| Isolation method | No-isolation |
| Isolation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) |
| Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. |
| NX Unit power
consumption |
• Connected to a CPU Unit or Communication Control Unit
0.85 W max. • Connected to a Communications Coupler Unit 0.45 W max. |
| I/O current
consumption |
No consumption |
| Weight | 65 g max. |
| Circuit layout |  |
| Installation orientation
and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
| Terminal connection
diagram |
 |

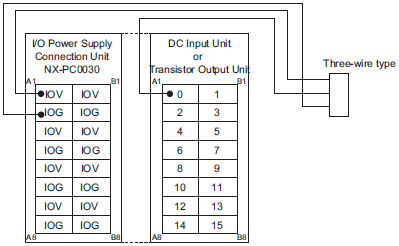

I/O Power Supply Connection Unit IOV/IOG terminal type NX-PC0030
| Unit name | I/O Power Supply Connection Unit |
|---|---|
| Model | NX-PC0030 |
| External connection
terminals |
Screwless push-in terminal block (16 terminals) |
| Number of I/O power
supply terminals |
IOV: 8 terminals
IOG: 8 terminals |
| Current capacity of I/O
power supply terminal |
4 A/terminal max. |
| Dimensions | 12 (W) × 100 (H) 71 × (D) |
| Isolation method | No-isolation |
| Insulation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) |
| Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. |
| NX Unit power
consumption |
• Connected to a CPU Unit or Communication Control Unit
0.85 W max. • Connected to a Communications Coupler Unit 0.45 W max. |
| I/O current
consumption |
No consumption |
| Weight | 65 g max. |
| Circuit layout |  |
| Installation orientation
and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
| Terminal connection
diagram |
 |

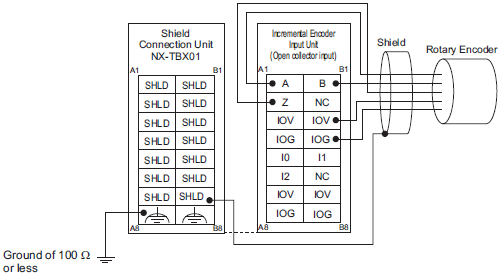

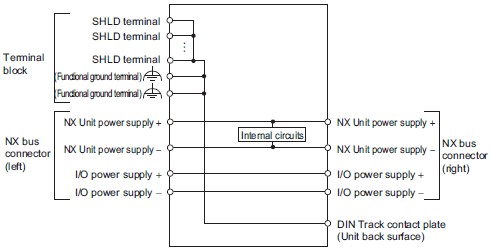

Shield Connection Unit NX-TBX01
| Unit name | Shield Connection Unit |
|---|---|
| Model | NX-TBX01 |
| External connection
terminals |
Screwless push-in terminal block (16 terminals) |
| Number of shield
terminals |
14 terminals (The following two terminals are functional ground terminals.) |
| Dimensions | 12 (W) × 100 (H) 71 × (D) |
| Isolation method | Isolation between the SHLD functional ground terminal, and internal circuit: No-isolation |
| Insulation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) |
| Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. |
| NX Unit power
consumption |
• Connected to a CPU Unit or Communication Control Unit
0.85 W max. • Connected to a Communications Coupler Unit 0.45 W max. |
| I/O current
consumption |
No consumption |
| Weight | 65 g max. |
| Circuit layout |  |
| Installation orientation
and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
| Terminal connection
diagram |
 |
Version Information
Connecting with CPU Units
Refer to the user's manual for the CPU Unit for the models of CPU Unit to which NX Units can be connected.
| NX Unit | Corresponding unit versions/versions | ||
|---|---|---|---|
| Model | Unit Version | CPU Unit | Sysmac Studio |
| NX-PD1000 | Ver.1.0 | Ver.1.13 | Ver.1.17 |
| NX-PF0630 | |||
| NX-PF0730 | |||
| NX-PC0020 | |||
| NX-PC0010 | |||
| NX-PC0030 | |||
| NX-TBX01 | |||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user's manuals for the specific Units for the relation between models and versions.
Connecting with EtherCAT Coupler Units
| NX Unit | Corresponding unit versions/versions | |||
|---|---|---|---|---|
| Model | Unit Version | EtherCAT Coupler Unit | CPU Units or Industrial PCs | Sysmac Studio |
| NX-PD1000 | Ver.1.0 | Ver.1.0 | Ver.1.05 | Ver.1.06 |
| NX-PF0630 | ||||
| NX-PF0730 | Ver.1.08 | |||
| NX-PC0020 | Ver.1.06 | |||
| NX-PC0010 | ||||
| NX-PC0030 | ||||
| NX-TBX01 | ||||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
Connecting with EtherNet/IP Coupler Unit
| NX Unit | Corresponding unit versions/versions | ||||||
|---|---|---|---|---|---|---|---|
| Model | Unit
Version |
Application with an NJ/NX/NY-series Controller *1 | Application with a CS/CJ/CP-series PLC *2 | ||||
| EtherNet/IP
Coupler Unit |
CPU Unit or
Industrial PC |
Sysmac
Studio |
EtherNet/IP
Coupler Unit |
Sysmac
Studio |
NX-IO
Configurator *3 |
||
| NX-PD1000 | Ver.1.0 | Ver. 1.2 | Ver. 1.14 | Ver. 1.19 | Ver.1.0 | Ver.1.0 | Ver. 1.00 |
| NX-PF0630 | |||||||
| NX-PF0730 | |||||||
| NX-PC0020 | |||||||
| NX-PC0010 | |||||||
| NX-PC0030 | |||||||
| NX-TBX01 | |||||||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
*1. Refer to the user’s manual for the EtherNet/IP Coupler Units for information on the unit versions of EtherNet/IP Units that are compatible with EtherNet/IP Coupler Units.
*2. Refer to the user’s manual for the EtherNet/IP Coupler Units for information on the unit versions of CPU Units and EtherNet/IP Units that are compatible with EtherNet/IP Coupler Units.
*3. For connection to an EtherNet/IP Coupler Unit with unit version 1.0, You can connect only to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect with any other path. If you need to connect by another path, use an EtherNet/IP Coupler Unit with unit version 1.2 or later.
Connecting with Communication Control Units
| NX Unit | Corresponding unit versions/versions | ||
|---|---|---|---|
| Model | Unit Version | Communication Control Unit | Sysmac Studio |
| NX-PD1000 | Ver.1.0 | Ver.1.00 | Ver.1.24 |
| NX-PF0630 | |||
| NX-PF0730 | |||
| NX-PC0020 | |||
| NX-PC0010 | |||
| NX-PC0030 | |||
| NX-TBX01 | |||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
