E52 (General purpose Models)
Temperature Sensor (General-purpose Models)
Sheathed Platinum Resistance Thermometers, Standard Platinum Resistance Thermometers, Sheathed Thermocouples and Standard Thermocouples
Related Contents
Application Solutions
last update: June 10, 2021
(Unit: mm)

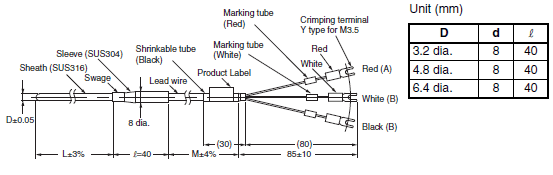

Sheathed Platinum Resistance Thermometers
Exposed-lead Models
E52-P[]AY
Lead Wire
• Standard (-20°C to 70°C): Fully vinyl-covered with twelve 0.18-dia conductors (0.3 mm thick) and 4.8 mm in outer dia.
The sleeve resists a temperature range between 0°C and 70°C.
• Heat Resistive (0°C to 180°C): Fully glass-wool-covered with thirty 0.12-dia. conductors (0.3 mm thick) externally
shielded with stainless steel, 4 mm in outer dia. The sleeve resists a temperature range between 0°C and 100°C.
• Lead Wire Length (M): 1, 2, 4, or 8 m
The sleeve resists a temperature range between 0°C and 70°C.
• Heat Resistive (0°C to 180°C): Fully glass-wool-covered with thirty 0.12-dia. conductors (0.3 mm thick) externally
shielded with stainless steel, 4 mm in outer dia. The sleeve resists a temperature range between 0°C and 100°C.
• Lead Wire Length (M): 1, 2, 4, or 8 m

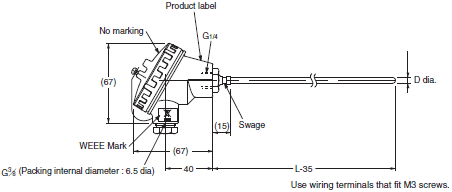

Enclosed-terminal Models
E52-P[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: 1. The terminals in the cap indicate polarity (A, B, b).
2. The length L is in centimeters, but “35” is 35 millimeters.
Therefore, for the E52-P35C-N: L = 35 (cm), the sheath length L - 35 = 350 - 35 = 315 mm.
2. The length L is in centimeters, but “35” is 35 millimeters.
Therefore, for the E52-P35C-N: L = 35 (cm), the sheath length L - 35 = 350 - 35 = 315 mm.

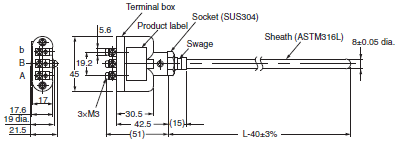

Exposed-terminal Models
E52-P[]B-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “40” is 40 millimeters.
Therefore, for the E52-P35B-N: L = 35 (cm), the sheath length L - 40 = 350 - 40 = 310 mm.
Therefore, for the E52-P35B-N: L = 35 (cm), the sheath length L - 40 = 350 - 40 = 310 mm.

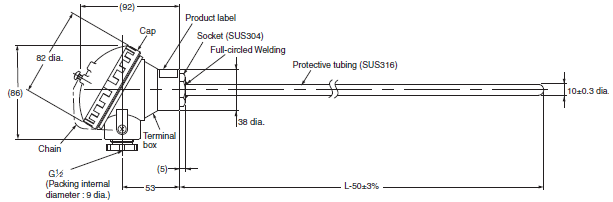

Standard Platinum Resistance Thermometers
Enclosed-terminal Models
E52-P[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: 1. The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-P75C-N: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.
Note: The terminals in the cap indicate polarity (A, B, B).
Therefore, for the E52-P75C-N: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.
Note: The terminals in the cap indicate polarity (A, B, B).

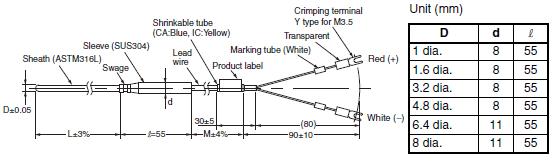

Sheathed Thermocouples
Exposed-lead Models
E52-CA[]AY
Note: 1. Lead Wire (Compensating Conductor)
• Standard ( -20°C to 70°C): Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external
dimensions of 2.4 × 4.1.
• Heat Resistive (0°C to 150°C): Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with
external shield of stainless steel and external dimensions of 2.8 × 4.6 The heat-resistive lead wires cannot
be used in locations exposed to water or other liquids.
• Lead Wire Length (M): 1, 2, 4, or 8 m
2. The sleeve resists temperatures ranging between -20°C and 70°C for standard models and 0°C and 100°C for
heat-resistive models.
• Standard ( -20°C to 70°C): Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external
dimensions of 2.4 × 4.1.
• Heat Resistive (0°C to 150°C): Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with
external shield of stainless steel and external dimensions of 2.8 × 4.6 The heat-resistive lead wires cannot
be used in locations exposed to water or other liquids.
• Lead Wire Length (M): 1, 2, 4, or 8 m
2. The sleeve resists temperatures ranging between -20°C and 70°C for standard models and 0°C and 100°C for
heat-resistive models.

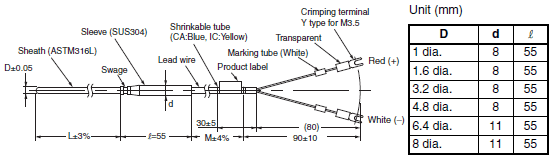

Exposed-lead Models
E52-IC[]AY
Note: 1. Lead Wire (Compensating Conductor)
• Standard (-20°C to 70°C): Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external
dimensions of 2.4 × 4.1.
• Heat Resistive (0°C to 150°C): Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with
external shield of stainless steel and external dimensions of 2.8 × 4.6 The heat-resistive lead wires cannot
be used in locations exposed to water or other liquids.
• Lead Wire Length (M): 1, 2, 4, or 8 m
2. The sleeve resists temperatures ranging between -20°C and 70°C for standard models and 0°C and 100°C for
heat-resistive models.
• Standard (-20°C to 70°C): Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external
dimensions of 2.4 × 4.1.
• Heat Resistive (0°C to 150°C): Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with
external shield of stainless steel and external dimensions of 2.8 × 4.6 The heat-resistive lead wires cannot
be used in locations exposed to water or other liquids.
• Lead Wire Length (M): 1, 2, 4, or 8 m
2. The sleeve resists temperatures ranging between -20°C and 70°C for standard models and 0°C and 100°C for
heat-resistive models.

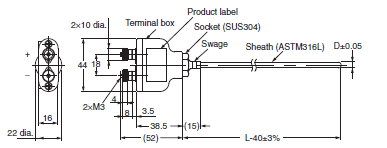

Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “40” is 40 millimeters.
Therefore, for the E52-CA50B-N: L = 50 (cm), the sheath length L - 40 = 500 - 40 = 460 mm.

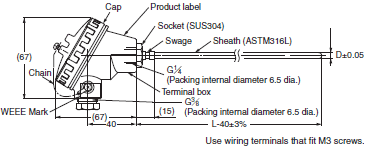

Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “40” is 40 millimeters.
Therefore, for the E52-CA35C-N: L = 35 (cm), the sheath length L - 40 = 350 - 40 = 310 mm.
Therefore, for the E52-CA35C-N: L = 35 (cm), the sheath length L - 40 = 350 - 40 = 310 mm.
Standard Thermocouples
Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-CA75B-N: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.
Therefore, for the E52-CA75B-N: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.

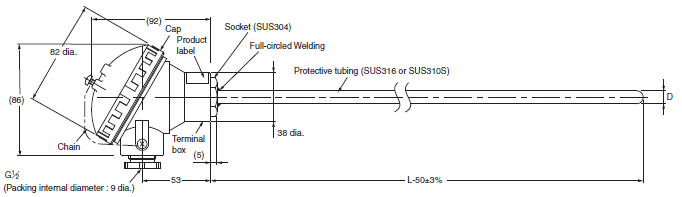

Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-CA50C-N: L = 50 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.

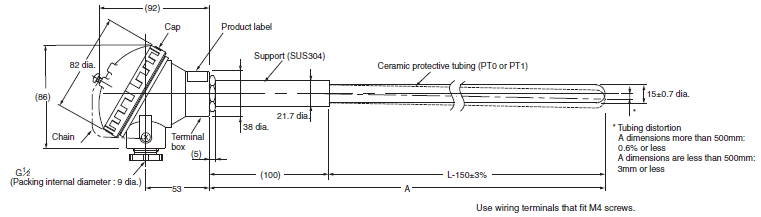

Enclosed-terminal Models (High-temperature Use)
E52-PR[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “150” is 150 millimeters.
Therefore, for the E52-PR75C-N: L = 75 (cm), the protective tubing length L - 150 = 750 - 150 = 600 mm.
