Industrial Automation

Industrial Automation

Discontinued On Jun. 2023

61F-GP-N2

Conductive Level Controller

61F-GP-N2

Automatic Water Supply and Drainage Control

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

61F-GP-N2

61F-GP-N2 Dimensions 1

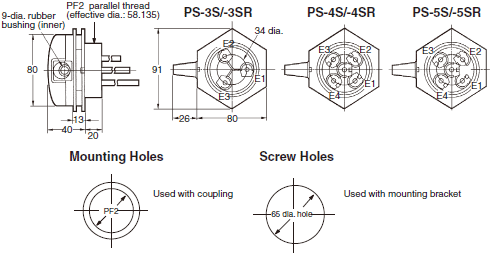

Electrode Holders

PS-3S

61F-GP-N2 Dimensions 3

PS-31

61F-GP-N2 Dimensions 4

* Standard holder construction includes three integral 300 mm length electrodes. However, a type having 1,000 mm length electrodes is available on request.

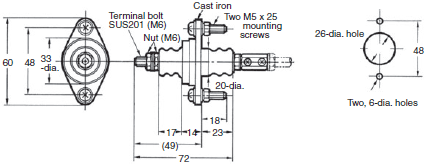

BF-1

61F-GP-N2 Dimensions 5

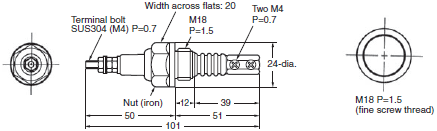

BS-1(S)

BS-1

61F-GP-N2 Dimensions 7

BS-1S
BS-1S-1
BS-1S2

61F-GP-N2 Dimensions 8

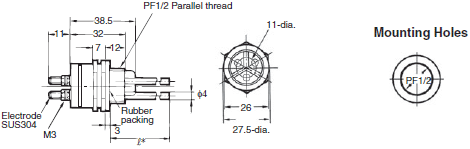

Electrode Separators

F03-14 1P (for Single Pole)

61F-GP-N2 Dimensions 10

F03-14 3P (for Three Poles)

61F-GP-N2 Dimensions 11
