Digital Temperature Controller (48 x 48 mm)
last update: October 23, 2023

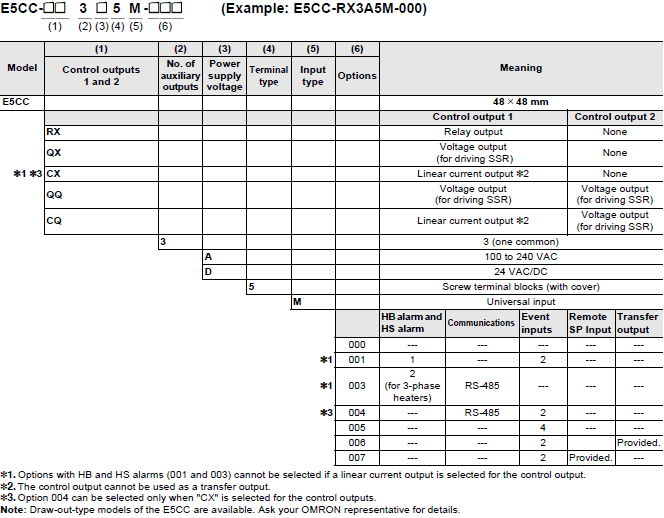

(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
(1)Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

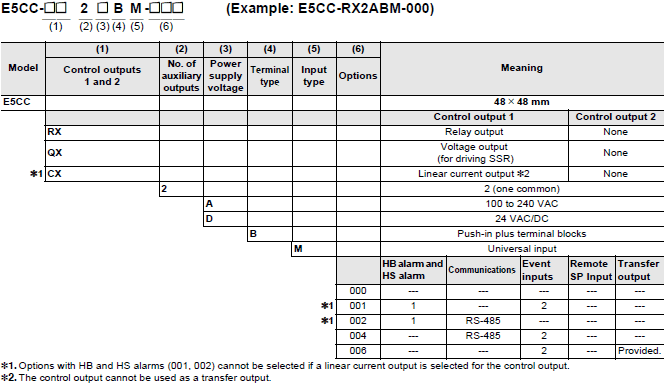

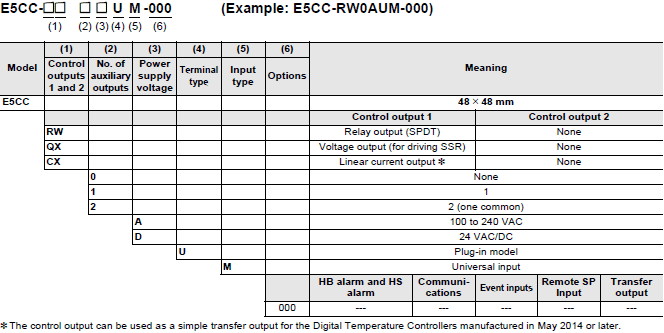

Control
output |
No. of
auxiliary outputs |
Options | Model | Model | ||
---|---|---|---|---|---|---|
HB alarm
and HS alarm |
No. of
event inputs |
Communica-
tions |
Power supply voltage | Power supply voltage | ||
100 to 240 VAC | 24 VAC/DC | |||||
Relay output | --- | --- | --- | --- | E5CC-RW0AUM-000 | E5CC-RW0DUM-000 |
1 | E5CC-RW1AUM-000 | E5CC-RW1DUM-000 | ||||
2 | E5CC-RW2AUM-000 | E5CC-RW2DUM-000 | ||||
Voltage output
(for driving SSR) |
--- | --- | --- | --- | E5CC-QX0AUM-000 | E5CC-QX0DUM-000 |
1 | E5CC-QX1AUM-000 | E5CC-QX1DUM-000 | ||||
2 | E5CC-QX2AUM-000 | E5CC-QX2DUM-000 | ||||
Linear current
output |
--- | --- | --- | --- | E5CC-CX0AUM-000 | E5CC-CX0DUM-000 |
1 | E5CC-CX1AUM-000 | E5CC-CX1DUM-000 | ||||
2 | E5CC-CX2AUM-000 | E5CC-CX2DUM-000 |
(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
Model |
---|
E58-CIFQ2 |
Model |
---|
E53-COV17 |
E53-COV23 (3pcs) |
Note: The E53-COV10 cannot be used.
Refer to Data Sheet for the mounted dimensions.
Model |
---|
Y92S-P8 |
Note: The Waterproof Packing is provided only with E5CC/E5CC-B Controllers.
The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.
Hole diameter | Model |
---|---|
5.8 mm | E54-CT1 |
5.8 mm | E54-CT1L * |
12.0 mm | E54-CT3 |
12.0 mm | E54-CT3L * |
* Lead wires are included with these CTs. If UL certification is required, use these CTs.
Model |
---|
Y92F-45 |
Note: Use this Adapter when the panel has already been prepared for an E5B[] Controller.
Model |
---|
Y92A-48N |
Model |
---|
Y92F-49 |
Note: This Mounting Adapter is provided with the Digital Temperature Controller.
Model |
---|
Y92F-52 |
Type | Model |
---|---|
Front-connecting Socket | P2CF-11 |
Front-connecting Socket with Finger Protection | P2CF-11-E |
Back-connecting Socket | P3GA-11 |
Terminal Cover for Back-connecting socket with Finger Protection | Y92A-48G |
Type | Model |
---|---|
Hard Front Cover | Y92A-48H |
Soft Front Cover | Y92A-48D |
Model |
---|
EST2-2C-MV4 |
