FQ-CR Series

Code Reader

FQ-CR Series

Exceptional Reading Performance with Easy Operation

last update: February 20, 2023

(Unit: mm)

Code Reader

(Dimensional drawings are provided here only for the products that have undergone design changes as of June 2012.)

FQ-CR

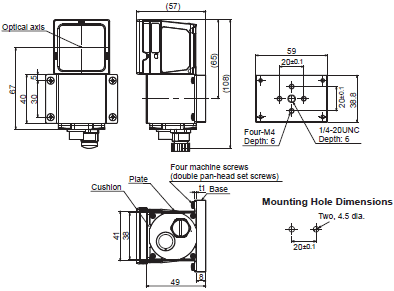

Mounting with the FQ-XL Mounting Bracket

FQ-CR Series Dimensions 3

* Dimentions with the FQ-XL Mounting Bracket

FQ-CR Series Dimensions 4

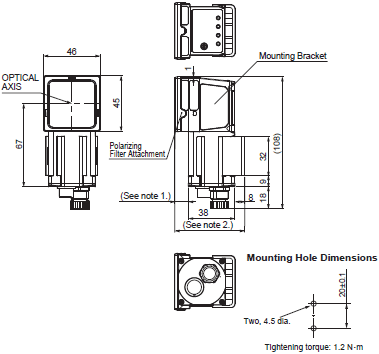

Mounting with the FQ-XL2 Mounting Bracket

FQ-CR Series Dimensions 5

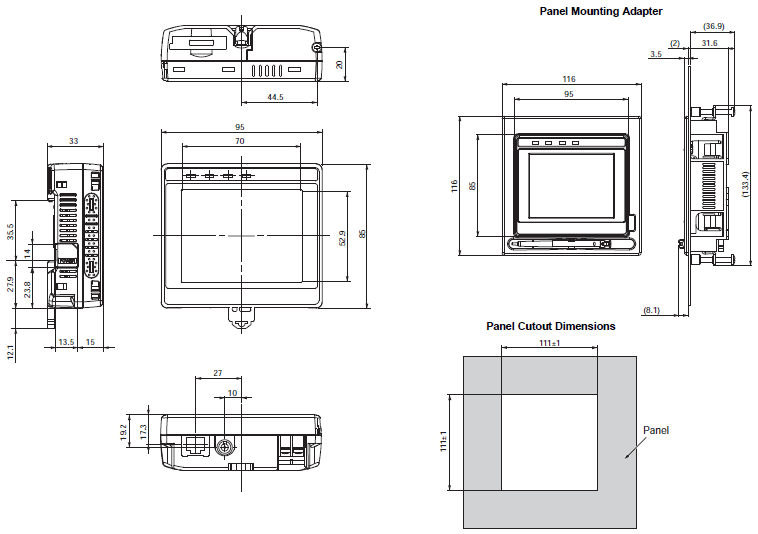

Touch Finder

FQ2-D30

FQ-CR Series Dimensions 7

last update: February 20, 2023
