Digital Timer


Easy to Use and Easy to Read.

Basic Features

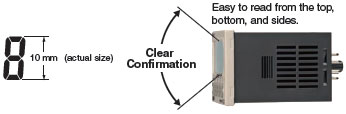

Better Readability

Character Height of 10 mm with a Wide Viewing Angle.

H5CZ Features 2

The Easiest Operation

Operation is simplified by the Up/Down Keys for each digit on 4-digit.

H5CZ Features 3

Safety and Reliability

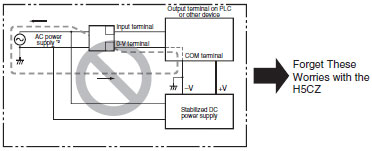

Isolated Power Supply and Input Circuits *

Power supply circuit and input circuits are isolated for safety and reliability.
Previous non-isolated timers had wiring restrictions and could be damaged if wired incorrectly. The H5CZ removes these worries.
* H5CZ with 100 to 240-VAC specifications.

H5CZ Features 5

Set Value Limit

You can set an upper limit for the set value to prevent unexpected operation of output devices caused by setting mistakes.

H5CZ Features 6

Output Counter

The output counter counts the number of times the output turns ON (alarm display, count monitoring, count in increments of 1,000). This counter is useful in managing the service life of the Timer or the load.

Other Features

Models with Instantaneous Contact Output

Models with instantaneous contact outputs have been added for use with self-holding circuits and as auxiliary relays. These models are also convenient when replacing analog timers.

Waterproof, Dust-proof Structure (UL508 Type 4X and IP66)

Worry-free application is possible in locations subject to water.
Note: When the Y92S-29 Waterproof Packing is used.

Key Protection

Select from any of seven protection patterns. Use the best one for the application.

New Modes

Modes, such as a stopwatch mode (Mode S), have been added.
Select any of 15 modes.
