Compact Non-Contact Door Switch/Non-Contact Door Switch Controller
last update: December 18, 2017
Model | D40A-1C[] | |
---|---|---|
Interlock type | Type 4 (EN ISO 14119) | |
Coding level | Low level coded (EN ISO 14119) | |
Operating
characteristics *2 |

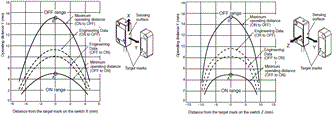

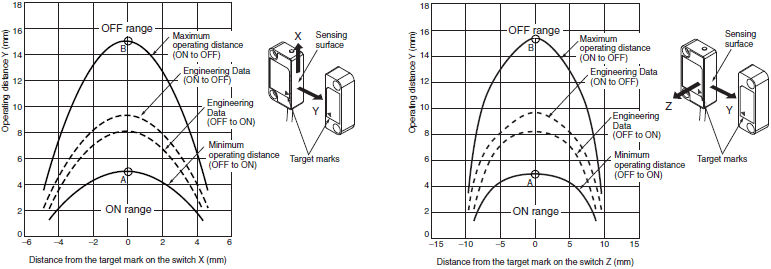

Operating distance
OFF→ON |
5 mm min. *1 |
Operating distance
ON→OFF |
15 mm max. *1 | |
Differential travel | 20% or less of operating distance at 23°C (maximum 2.5 mm) | |
Influence of
temperature (max.) |
±20% of operating distance at 23°C, within temperature range of -10 to 55°C | |
Repeat accuracy | ±10% or less of operating distance at 23°C | |
Ambient operating temperature | -10 to 55°C (no icing or condensation) | |
Ambient operating humidity | 25% to 85% | |
Insulation resistance (between
charged parts and case) |
50 MΩ max. (at 500 VDC) | |
Dielectric strength (between
charged parts and case) |
1,000 VAC for 1 min | |
Pollution degree | 3 | |
Electromagnetic compatibility | IEC/EN 60497-5-3 compliant | |
Vibration resistance | 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) | |
Shock resistance | 300 m/s2 min. | |
Degree of protection | IP67 | |
Material | PBT resin | |
Mounting method | M4 screws | |
Terminal screw tightening torque | 1 N·m | |
Power supply voltage | 24 VDC +10%/-15% | |
Power consumption | 0.6 W max. | |
Auxiliary outputs *3 | 24 VDC, 10 mA (PNP open-collector outputs) | |
LED indicators | Actuator not detected (red); actuator detected (yellow) | |
Connection cables | 2 m, 5 m, 0.15m (Connector type) | |
Number of connectable switches | 30 max. (wiring length: 100 m max.) *4 | |
Weight | Switch: approx. 145 g, actuator: approx. 20 g (D40A-1C2) |
Rated current | 4 A |
---|---|
Rated voltage | 250 VAC/VDC |
Contact resistance (Connector) | 40 mΩ max. (20 mV max., 100 mA max.) |
Insulation resistance | 1,000 MΩ min. (at 500 VDC) |
Dielectric strength (Connector) | 1,500 VAC for 1 min (leakage current: 1 mA max.). |
Degree of protection | IP67 (IEC60529) |
Insertion tolerance | 200 times min. |
Cable holding strength | Cable diameter: 6 mm 98 N/15 s |
Ambient operating temperature range | Operating: - 25°C to 70°C |
Ambient humidity range | 20% to 85% |
Item | XS2F/H/W | |
---|---|---|
Contacts | Materials | Phosphor bronze |
Finish | Nickel base, 0.4-μm gold plating | |
Thread bracket | Materials | Brass |
Finish | Nickel plated | |
Pin block | Materials | PBT resin (UL94V-0) |
Finish | For DC: light gray; for AC: dark gray | |
O-ring/rubber bushing | Rubber | |
Cover | PBT resin (UL94V-0) |
Model | G9SX-NS202-[] | G9SX-NSA222-T03-[] | G9SX-EX-[] |
---|---|---|---|
Rated supply voltage | 24 V DC | ||
Operating voltage range | -15% to 10% of rated supply voltage | ||
Rated power consumption * | 3 W max. | 4 W max. | 2 W max. |
* Power consumption of loads not included.
Model | G9SX-NS202-[]/G9SX-NSA222-T03-[] |
---|---|
Safety input *1 | Operating voltage: 20.4 VDC to 26.4 VDC, internal impedance: approx. 2.8 kΩ *2 |
Feedback/reset input |
*1. Only applies to the G9SX-NSA222-T03-[]. Refers to input other than that from the Non-contact Door Switch.
*2. Provide a current equal to or higher than that of the minimum applicable load of the connected input control device.
Model | G9SX-NS202-[]/G9SX-NSA222-T03-[] |
---|---|
Instantaneous safety output *1
OFF-delayed safety output *1 |
P channel MOS FET transistor output
Load current: 0.8 A DC max. *2 |
Auxiliary output | PNP transistor output
Load current: 100 mA max. |
Model | G9SX-EX-[] |
---|---|
Rated load | 250 VAC, 3 A/30 VDC, 3 A (resistive load) |
Rated carry current | 3 A |
Maximum switching voltage | 250 VAC, 125 VDC |
Model | G9SX-NS202-[] | G9SX-NSA222-T03-[] | G9SX-EX-[] | |
---|---|---|---|---|
Over-voltage category
(IEC/EN 60664-1) |
II | II (Relay outputs 13 to
43 and 14 to 44: III) |
||
Operating time (OFF to ON state) *1 | Logical AND connection
input: 100 ms max. D40A connected: 100 ms max. D40Z connected: 200 ms max. |
Safety input: 50 ms max. *2
Logical AND connection input: 100 ms max. *3 D40A connected: 100 ms max. *3 D40Z connected: 200 ms max. *3 |
30 ms max. *4 | |
Response time (ON to OFF state) *1 | 15 ms max. (Logical
AND connection input: OFF) Logical AND connection input: 15 ms max. D40A connected: 20 ms max. *6 D40Z connected: 45 ms max. |
15 ms max. (Logical AND
connection input: OFF) Safety input: 15 ms max. Logical AND connection input: 15 ms max. D40A connected: 20 ms max. *6 D40Z connected: 45 ms max. |
10 ms max. *4 | |
ON-state residual voltage | 3.0 V max. (safety output, auxiliary output) | |||
OFF-state leakage current | 0.1 mA max. (safety output, auxiliary output) | |||
Maximum wiring length of safety
input, logical AND connection input, and Non-contact Door Switch input |
100 m max. (External connection impedance: 100 Ω max. and 10 nF max.) | |||
Reset input time
(Reset button pressing time) |
100 ms min. | |||
Accuracy of OFF-delay time *5 | --- | Within ±5% of the set
value |
Within ±5% of the set
value |
|
Insulation
resistance |
Between logical AND
connection terminals, and power supply input terminals and other input and output terminals connected together |
20 MΩ min. (at 100 VDC) | --- | |
Between all terminals
connected together and DIN rail |
100 MΩ min.
(at 500 VDC) |
|||
Dielectric
strength |
Between logical AND
connection terminals, and power supply input terminals and other input and output terminals connected together |
500 VAC for 1 min. | --- | |
Between all terminals
connected together and DIN rail |
1,200 VAC for 1 min | |||
Between different poles
of outputs |
--- | |||
Between relay outputs
connected together and other terminals connected together |
2,200 VAC for 1 min | |||
Vibration resistance | 10 to 55 to 10 Hz, 0.375 mm single amplitude (0.75 mm double amplitude) | |||
Shock
resistance |
Destruction | 300 m/s2 | ||
Malfunction | 100 m/s2 | |||
Durability | Electrical | --- | 100,000 cycles min.
rated load, switching frequency: 1,800 cycles/hour) |
|
Mechanical | --- | 5,000,000 cycles min.
(switching frequency: 7,200 cycles/hour) |
||
Ambient operating temperature | -10 to 55°C (no icing or condensation) | |||
Ambient operating humidity | 25% to 85% | |||
Terminal tightening torque | 0.5 N·m (For the G9SX-NS[]-RT (with screw terminals) only) | |||
Weight | Approx. 125 g | Approx. 200 g | Approx. 165 g |
