Pull-reset Safety Limit Switch
last update: April 1, 2022

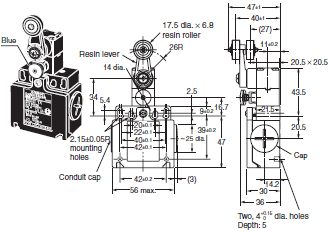

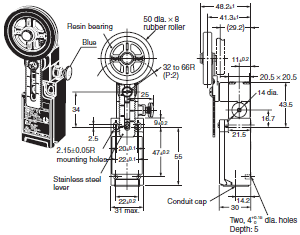

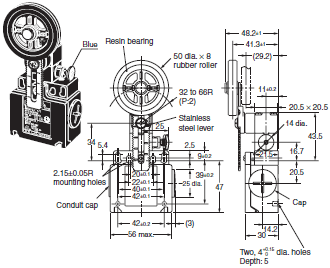

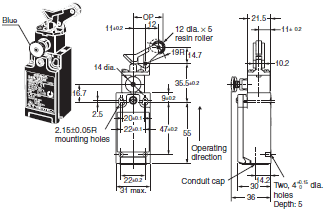

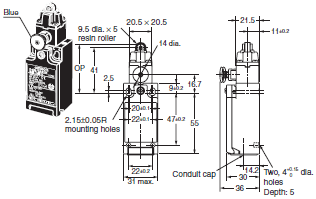

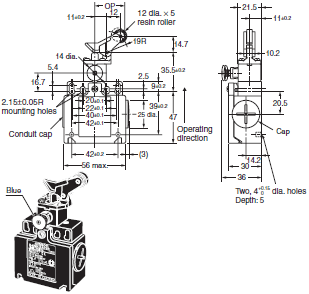

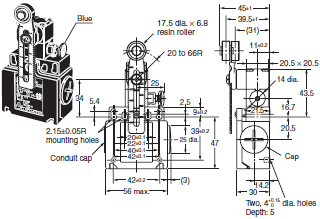

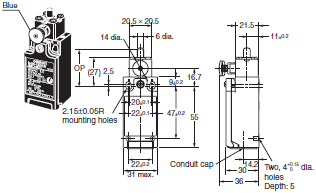

(Unit: mm)
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
* Refer to "1-conduit M12 connectors" for diagram.
* Refer to "1-conduit M12 connectors" for diagram.
Refer to the following diagrams for the angles and positions of the dogs.
