OMRON TM Collaborative Robot, S Series

TM S Series

S Series Collaborative Robot (Cobot) for assembly, palletizing, inspection, logistics and many other applications

last update: September 19, 2023

(Unit: mm)

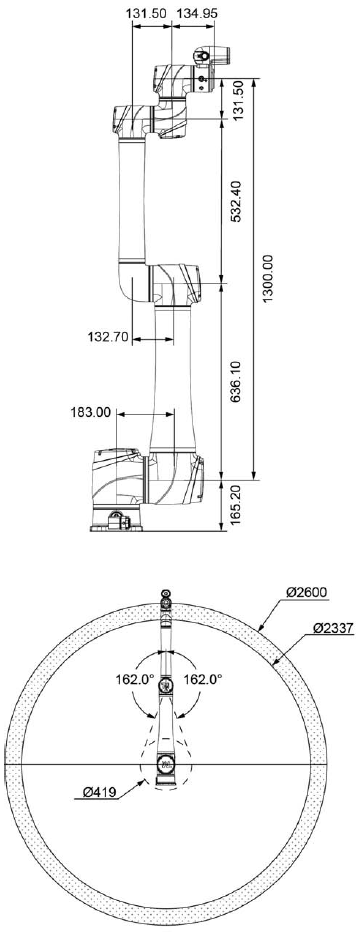

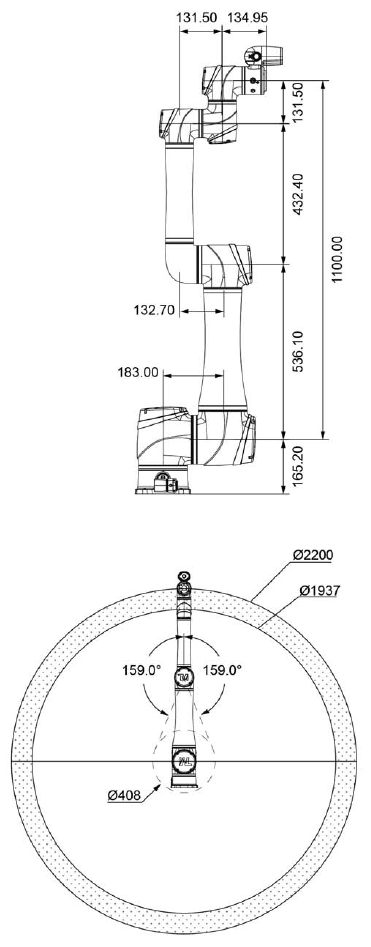

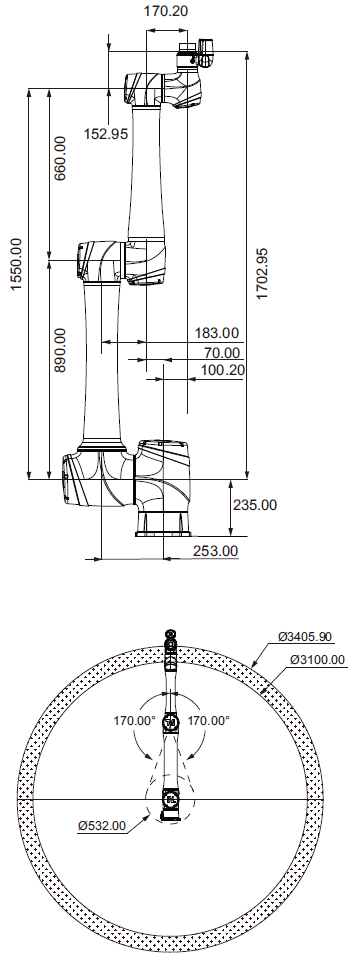

TM7S/TM7S-X/TM7S-M *

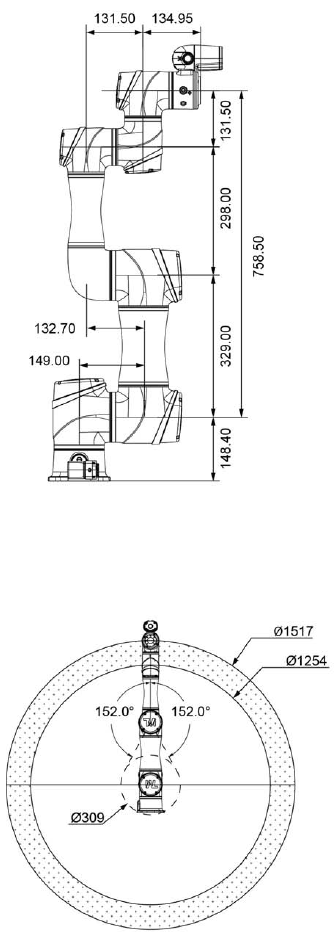

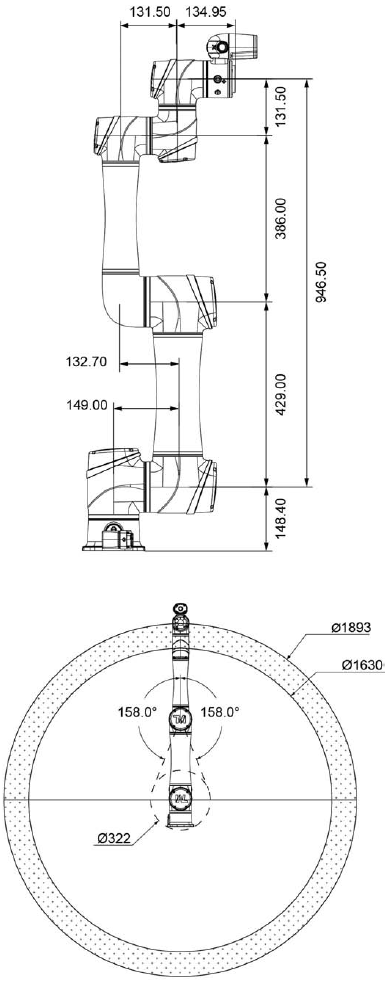

TM5S/TM5S-X/TM5S-M *

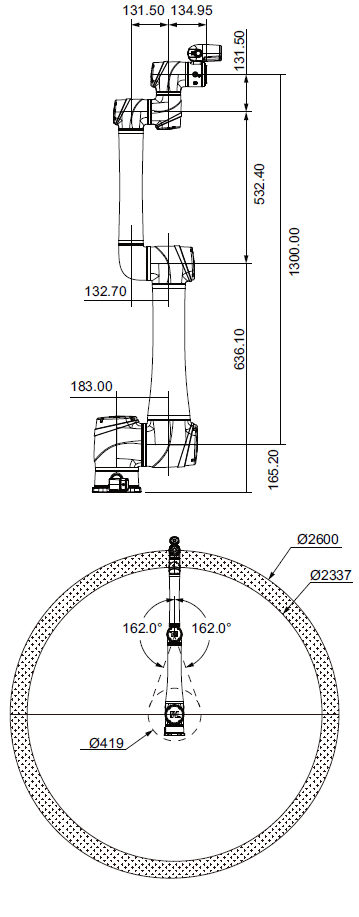

TM12S/TM12S-X/TM12S-M *

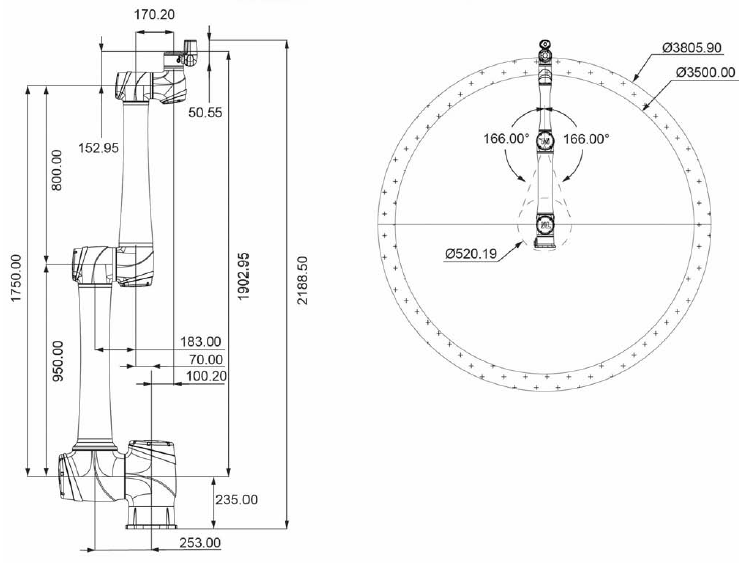

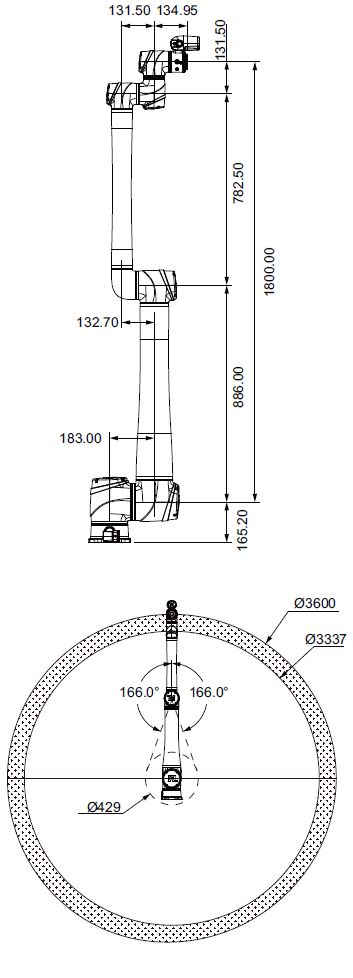

TM14S/TM14S-X/TM14S-M *

* Dimensions do not include the camera. Refer to the Camera Flange dimensions for more information.

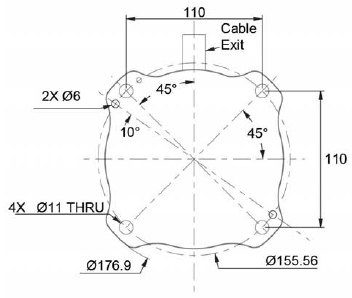

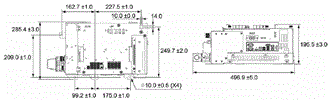

Footprint (TM5S/7S Models)

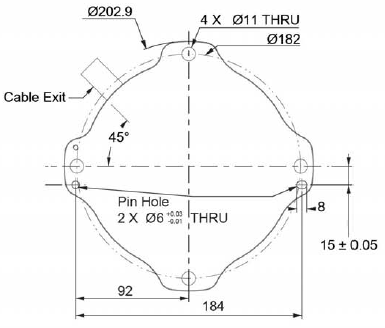

Footprint (TM12S/14S Models)

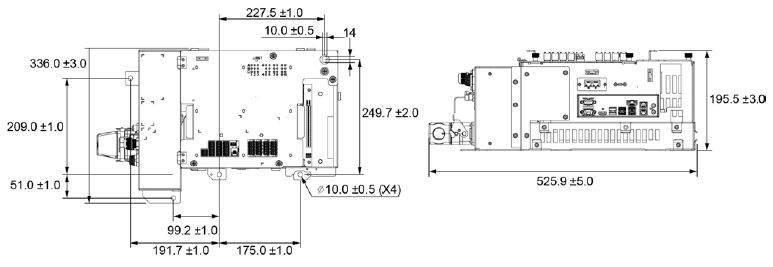

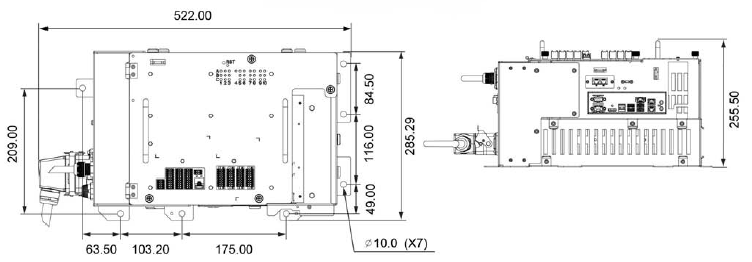

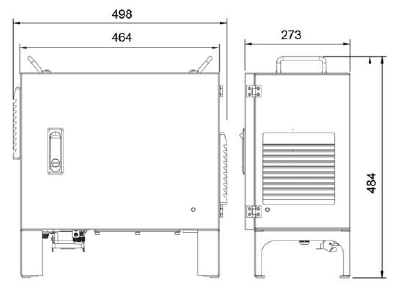

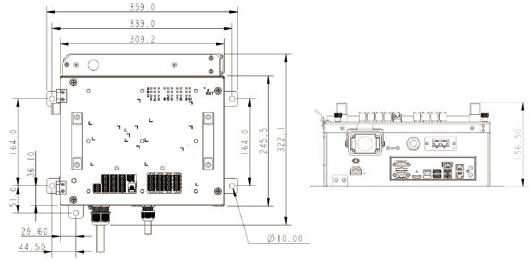

Control Box

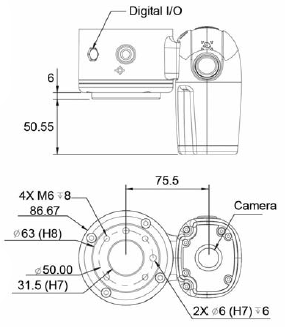

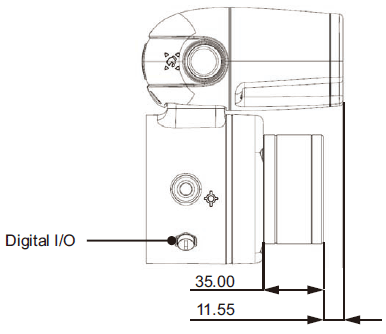

Camera Flange
