XS5 NEXT Series
Round Oil-resistant Connectors (M12 Smartclick)
Round Oil-resistive Smartclick Connectors, that are Resistant to Oil, and that Reduce Installation Work
Related Contents
Application Solutions
- Features
- Lineup
- Specifications
- Dimensions
- Catalog / Manual / CAD / Software
last update: January 15, 2019
Ratings and Specifications
| Rated current | 4 A |
|---|---|
| Rated voltage | 250 VDC |
| Contact resistance (connector) | 40 mΩ max. (at 20 mV max., 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) *1 |
| Dielectric strength (connector) | 1,500 VAC for 1 minute (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529)
IP69K (ISO20653 (formerly DIN Standard 40050 PART9)) OMRON’s Oil-resistant Component Evaluation Standards *2 Cutting oil type JIS K 2241:2000-specification cutting oil, at 35°C or below) |
| Insertion tolerance | 50 times |
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Cable holding strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Lock operating force | 0.1 to 0.25 N·m |
| Ambient operating temperature range | -25 to +70°C *3 |
| Ambient humidity range | 20 to 85%RH |
*1. State at shipping.
*2. “OMRON’s Oil-resistant Component Evaluation Standards” are OMRON’s own durability evaluation standards.
Protection performance with oil-resistive connector (XS5F/W-X) correctly mated.
This performance does not apply if an oil-resistive connector (XS5F/W-X) is missing, and cord wiring is exposed.
*3. Use the robot cable within a temperature range of 0 to 70°C to avoid the wire breakage when moving.
Materials and Finishes
| Item | XS5F/W-X | XS5F/W-XR |
|---|---|---|
| Oil-resistant PVC cable | Oil-resistant PVC robot cable | |
| Contacts | Copper alloy/Gold plating | |
| Fixtures | Zinc alloy/Nickel plating | |
| Fixtures (Lock) * | Stainless | |
| Pin block | PBT resin | |
| O-ring | Material combining HNBR and fluororubber | |
| Cover | PBT resin | |
| Cable | UL 758 (AWM) 6 mm dia.
AWG20 |
UL 758 (AWM) 6 mm dia.
AWG21 |
* Only plug

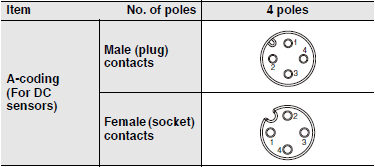

Connector Pinout Diagram (from Mating Side)
last update: January 15, 2019
