3Z4S-LE VS-L / M42-10 Series

Lens for M42-mount Cameras

3Z4S-LE VS-L / M42-10 Series

Wide variety of lenses with focal lengths ranging from 18 to 100 mm.

last update: March 7, 2022

(Unit: mm)

VS-L1828/M42-10

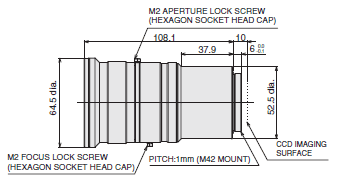

3Z4S-LE VS-L / M42-10 Series Dimensions 1

VS-L2526/M42-10

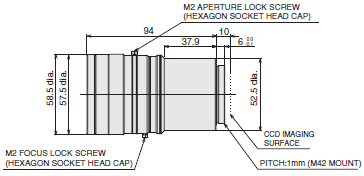

3Z4S-LE VS-L / M42-10 Series Dimensions 2

VS-L3528/M42-10

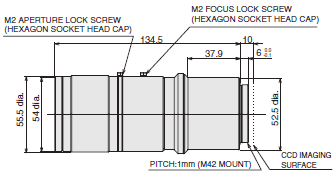

3Z4S-LE VS-L / M42-10 Series Dimensions 3

VS-L5028/M42-10

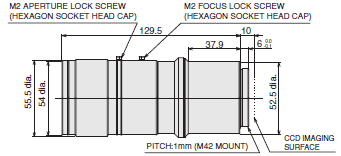

3Z4S-LE VS-L / M42-10 Series Dimensions 4

VS-L8540/M42-10

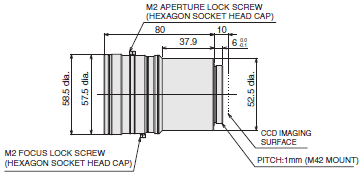

3Z4S-LE VS-L / M42-10 Series Dimensions 5

VS-L10028/M42-10

3Z4S-LE VS-L / M42-10 Series Dimensions 6

last update: March 7, 2022
