S8JX-P

Switch Mode Power Supply (300/600-W Models)

S8JX-P

S8JX-P Series with EMI ClassB and Power Factor Correction is newly added to S8JX Series.

(Unit: mm)

Front-mounting Models

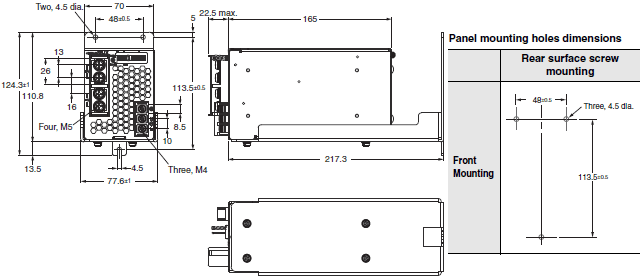

S8JX-P300[][]C (300 W)

S8JX-P Dimensions 2

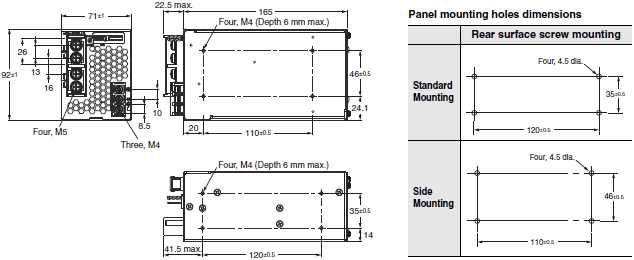

S8JX-P300[][]N (300 W)

S8JX-P Dimensions 3

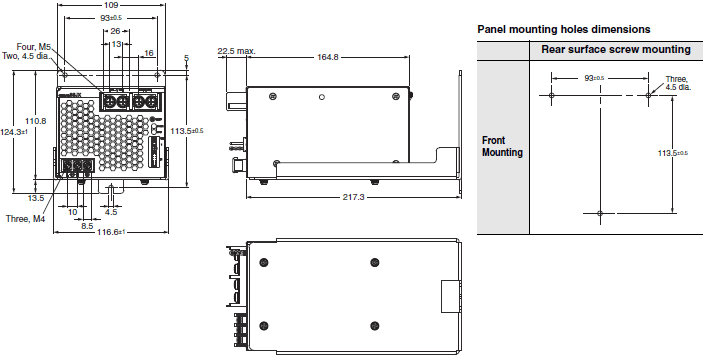

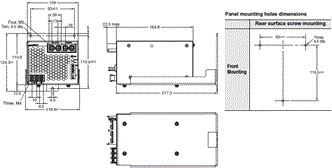

S8JX-P600[][]C (600 W)

S8JX-P Dimensions 4

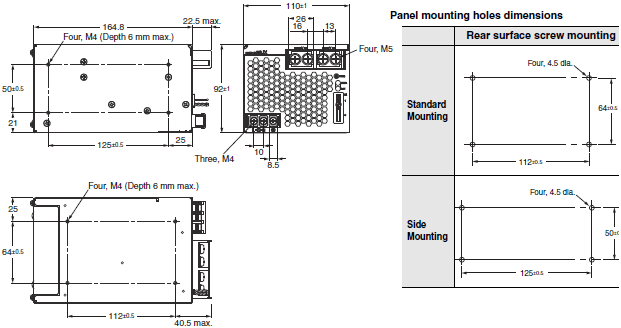

S8JX-P600[][]N (600 W)

S8JX-P Dimensions 5

DIN Rail-mounting Models

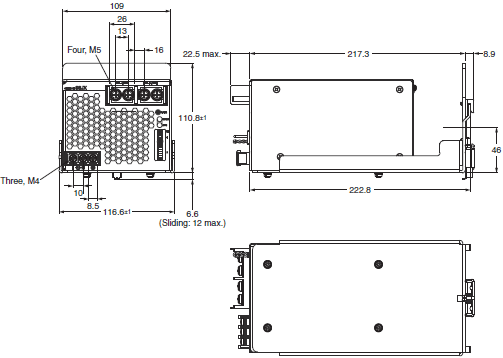

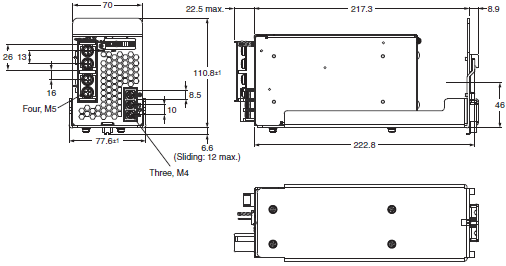

S8JX-P300[][]CD (300 W)

S8JX-P Dimensions 7

Note: Use a metal DIN Rail when mounting a 300-W model to a DIN Rail.

S8JX-P600[][]CD (600 W)

S8JX-P Dimensions 8

Note: Use a metal DIN Rail when mounting a 600-W model to a DIN Rail.

DIN Rail (Order Separately)

End Plate

S8JX-P Dimensions 10

Note: 1. Use a metal DIN Rail when mounting the S8JX-P to a DIN Rail.
         2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.
