E2FM

Proximity Sensor with All-stainless Housing

E2FM

Highly Durable Proximity Sensor for Tough Environments

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: March 1, 2017

One-piece completely stainless-steel housing with a face thickness of 0.8 mm

The face thickness is approximately 4 times that of previous models (E2ES) to enable sensing in even more severe conditions than ever.

Brush Test

Continuous Impact Test

Chemical and Detergent Proof

The one-piece completely stainlesssteel　housing of the sensing section　withstands the following chemicals　better.

• Sodium chloride
• Gasoline
• Dilute sodium hydroxide
• Dilute hydrochloric acid
• Mineral oil
• Barium hydroxide
Any many others

Note: Cannot be used for explosion-proof　applications

Built-in Chip Immunity

Chip immunity performance has been provided to greatly reduce false signals caused by spatter accumulation and other causes, almost eliminating the needs for cleaning, e.g., with metal brushes.

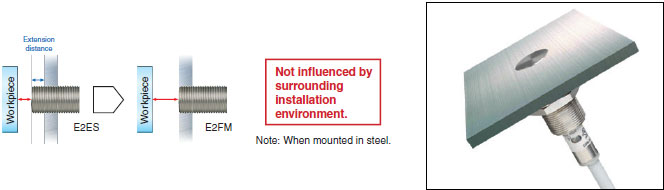

Flush Mounting

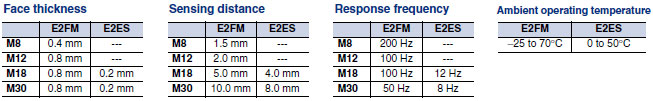

Main Performance Comparison to Previous OMRON Products

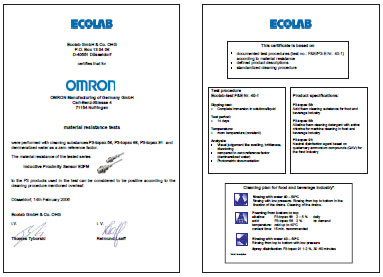

The chemical resistance has been certified by Ecolab Europe
